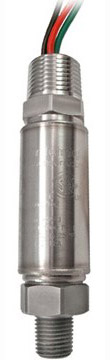

AST46SW Media Isolated Pressure Switch
Starting at $379.17

Not in stock. Usually ships in 8-14 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Switching pressures from 0 to 10,000psi
  • CSA 30 (UL1203/FM3615) Class 1 Zone 1 Group IIC
  • CSA 30 Class 1 Div 1 Groups A, B, C, D explosion proof
  • Single pole, double throw relay with factory set hysteresis
  • ANSI 12.27.08-1 single seal approved
  • ASIC Compensation
  • Superb temperature performance
  • Operating temp: -40 to 185°F (-40 to 85°C)
  • Accuracy: <±1.0% BFSL of line pressure
  • High proof and burst pressure
  • Factory sealed

The AST46SW Media Isolated Pressure Switch is a high accuracy explosion proof pressure switch, designed for use in a variety of applications. Applying digital compensation, this product offers top performance over a wide temperature range. Utilizing Krystal Bond Technology™, the sensing element will measure pressure in the most extreme temperature conditions. Where other sensor technologies will freeze or boil, the AST46SW uses a one piece stainless steel sensor to offer continuous operation. If linearity and repeatability are critical for your application, this product will exceed your expectations at an affordable price.

For optional pressure ports and electrical interfaces, ranges not shown, and Inconel 718 please contact Instrumart

Applications include:

  • Well Optimization
  • Oil and Gas Pipelines
  • Drilling Platforms
  • CNG / Hydrogen Fill Stations
  • Paint Booths
  • RTU
  • Combustion Controls

Applications

This product can be used in the following applications:
