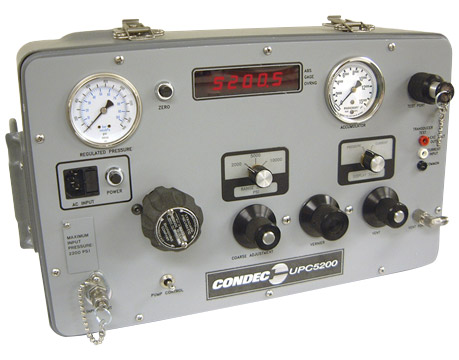

Condec UPC5200 / UPC5210 High Pressure Calibration Standard
Starting at $17,195.00

Usually ships in 6 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • Three independent selectable ranges
  • ±0.05% F.S. accuracy
  • LED or LCD display
  • Pressure display resolution 0.02% F.S.
  • Electronically controlled 10:1 intensifier system
  • Easy to operate and carry
  • Adjustable overpressure protection above input pressure
  • Precision pressure vernier control
  • Voltage/current display mode for transducer testing
  • 32 VDC excitation output
  • Non-destructible, finger tip control micro-metering valves for pressure control
  • Automatic pushbutton calibration
  • Quick-disconnect fitting and hose included
  • Pneumatic only - no hydraulics or distilled water messes
  • External pressure cylinder included with UPC5200

The Condec UPC5200 / UPC5210 High Pressure Calibration Standard Provides sophisticated performance in high-pressure applications. The durable UPC5200 is the most effective pressure calibration standard in its class.

The UPC5200 excels in applications presenting pressure levels up to 10,000 psi. Featuring automatic pushbutton calibration, this unit guarantees 0.05% accuracy in three switch-selectable ranges. The exclusive patented precision pressure Orion 3A vernier provides infinite control to obtain exact pressure readings, while a reliable overpressure regulator protects units under test from permanent damage.

The fully-pneumatic UPC5200 is powered by nitrogen and eliminates the mess and oil thermal equilibrium problems common to hand pump hydraulic systems. Clean operation makes this calibrator ideal for use in aerospace, food and beverage, and general industry. The UPC5200 is easy to operate and training can be accomplished in as little as 10 minutes. Different technicians can calibrate the same transmitter and get identical results...every time.

For special high-pressure applications, the portable UPC5200 or 19 inch rack-mount UPC5210 provides the ultimate in dependable, high-precision performance.

Applications include:

  • Any high-pressure, pneumatic-only application
  • Initial test of high-pressure hydraulic systems
  • Boiler feed pressure for power plants
Condec 58478 Pressure Trap
Pressure trap for PIN7000/PIN7010 pneumatic pressure intensifier
$945.00
Condec 59533 External Portable Pressure Cylinder
External portable pressure cylinder 83.3 cu ft
$475.00
Condec 55280 Test Port
Additional test port (output) 4 1/2 ft. long hose
$787.49
Condec 55542 Quick Disconnect Test Port
Quick-disconnect test port (output) fitting male plug and 7/16-20 37 DEG (AN-4) JIC male on opposite end w/ internal 40 micron filter
$499.00
Condec 150613 External Cylinder Fill
5ft long hose with CGA-580 type male nipple both ends 0-3000 PSI working pressure
$159.00
Condec 60109 Calibration Module
Calibration module for condec 5000 series pressure calibrators
$600.00
