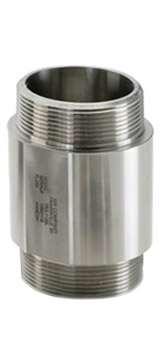

AW Gear Meters TRG Series Turbine Flow Meters
Rugged 316 stainless steel construction, ranges 0.08 to 5,000 GPM (gal/min)
Need Help? Call a Flow Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- Working pressure up to 5,000 psi
- Accuracy: ±1% of reading or better
- Repeatability: ±0.1%
- Turn down ratio of 10:1
- Fluid temperature of -150° to 450°F
- NPT end connections
- Body & rotor support: 316 stainless steel
- Rotor: stainless steel
- Rotor shaft: tungsten carbide
The AW TRG Series Turbine Flow Meters have a sturdy construction which provides high performance and longer service life at an affordable price. This is the ideal turbine flow meter for monitoring solvents and other lower viscosity fluids, such as antifreeze and fuel measurement.
The sturdy construction of this turbine ﬂow meter means high performance and longer service life at an affordable price.
The TRG Series ﬂow meter comes with a standard NPT end connection for universal applications.
This meter is capable of measuring ﬂow in line sizes from 1/2" to 10".
This meter can provide displayed ﬂow rate, totalization, current or voltage outputs through a variety of compatible electronics.
The TRG Series was designed with only one moving part for easy cleaning and maintenance.
This product can be used in the following applications:
