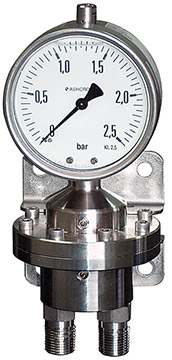

Ashcroft 5509 Differential Pressure Gauge
Starting at $1,936.75

Not in stock. Usually ships in 6-8 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Stainless steel case
  • Inches of water differential ranges
  • Static pressure for ranges 160IW & lower – 145 psi above 160IW – 360 psi
  • External zero adjust
  • Available with open or solid front case styles
  • Optional liquid-filled case
  • 4in (100mm) or 6in (160mm) dial sizes

The Ashcroft 5509 differential pressure gauge comes standard with 316SS wetted parts. This rugged gauge features an external zero adjust feature standard and static pressure up to 360 psi.
