This product has been retired.
Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET
Repair & Calibration: Instrumart is a factory service center for the original Star series. Call 1-800-884-4967 to discuss.

Features

  • Improved stability algorithm to increase calibration and measurement accuracy
  • Average slope and slope of segment printed with measurement
  • Ability for ATC temperature calibration
  • Increased data log points: 500
  • Ability to turn off data log
  • Ability to print or view last 10 calibrations
  • New Individual method passwords
  • Ability to turn off BOD stirrer
  • Solution and membrane temperature printed with measurement
  • Solution and membrane temperature displayed
  • Ability to calibrate both solution and membrane temperature
  • DO slope now on printout
  • Third decimal point for cell constant entry
  • Added 5 and 10°C as reference temperature options
  • Added second decimal point to temperature compensation
  • Ability to calibrate conductivity temperature sensor

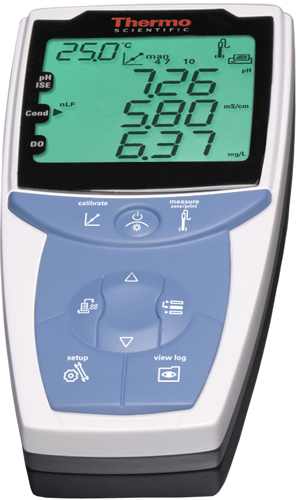

The Thermo Scientific Orion 5-Star Plus pH/ORP/conductivity/dissolved oxygen meter, which is only available as a portable meter, features IP67-rated housing for waterproof and dust proof protection and has the ability to simultaneously display pH, ORP, conductivity and dissolved oxygen measurements.

Other features of the Thermo Scientific Orion 5-Star Plus pH/ORP/conductivity/dissolved oxygen meter include a backlit LCD, Smart Stability and Smart Averaging functions for automatically optimized accuracy, precision and response time, a built-in barometer for automatic pressure correction and a full complement of GLP-related features including Star Navigator 21 software.

There are several different kits available for the portable meter.

Portable Meter Kits
Application Sensor(s) Accessories & Solutions

Fresh Water 2

  • 9107WMMD Low maintenance epoxy pH/ATC Triode electrode with 3 meter cable
  • 083010MD DO probe with 3 meter cable and calibration sleeve
  • 013010MD DuraProbe conductivity cell, K = 0.475, includes 3 meter cable, 1 μS/cm to 200 mS/cm
  • Meter impact jacket with electrode storage chamber
  • Beaker
  • Star Navigator 21 software with RS232 computer cable
  • pH electrode storage solution (5 x 60 mL bottles)
  • pH 4.01, 7.00, 10.01 buffers (10 x 15 mL pouches)
  • DO probe maintenance kit - 080513
  • Protective probe guard
  • 1413 μS/cm conductivity standard (10 x 15 mL pouches)
  • Soft field case

Fresh Water 3

  • 9107WMMD Low maintenance epoxy pH/ATC Triode electrode with 3 meter cable
  • 083010MD DO probe with 3 meter cable and calibration sleeve
  • 013010MD DuraProbe conductivity cell, K = 0.475, includes 3 meter cable, 1 μS/cm to 200 mS/cm
  • Meter impact jacket with electrode storage chamber
  • Beaker
  • Star Navigator 21 software with RS232 computer cable
  • pH electrode storage solution (5 x 60 mL bottles)
  • pH 4.01, 7.00, 10.01 buffers (10 x 15 mL pouches)
  • DO probe maintenance kit - 080513
  • Protective probe guard
  • 1413 μS/cm conductivity standard (10 x 15 mL pouches)
  • Hard field case
