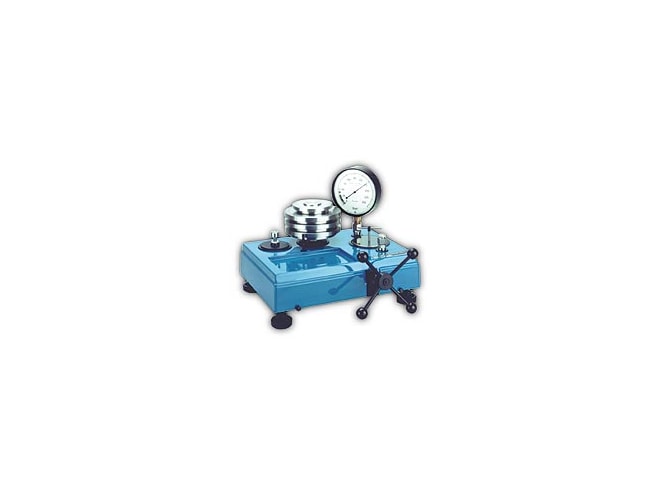

Druck 9000 Series Deadweight Tester

Cost-effective precision pressure calibration source for almost any application.

Retired products cannot be ordered

The GE Pressurements P3000H is the recommended replacement

View Company Reviews

Manufactured

By Druck

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Features

Precision pressure calibration
Stainless steel, non-magnetic weights
Single-piston or dual-piston models
Corrections for local gravity
Manual or motorized units
Relief valve to protect against over-pressure

The Druck 9000 Series of hydraulic deadweight testers cover a complete pressure range up to 60,000 psi, offering a high-quality, cost-effective precision calibration source for almost any application. The 9000 Series is available in single piston or dual piston models for expanded range capabilities with either manual or motorized operation.

Included with your purchase of a Series 9000 deadweight tester is a calibration certificate. Certificates can be supplied at accuracies of 0.015% or 0.025% of reading.

9000 Series deadweight testers from SI Pressure provide a means of testing pressure indicating instruments for calibration accuracy; oil-operated and water-operated units are available. The design uses the piston gauge principle in which an applied pressure within the system balances a known mass applied to a piston of known effective area. In the comparison mode, the dead weight tester can be used to compare the readings of a test instrument directly with those of a standard instrument.
