Madgetech OctTemp & OctTemp2000 Thermocouple Data Logger

8-channel, thermocouple based temperature data logger with mini plug connectors and optional LCD display.

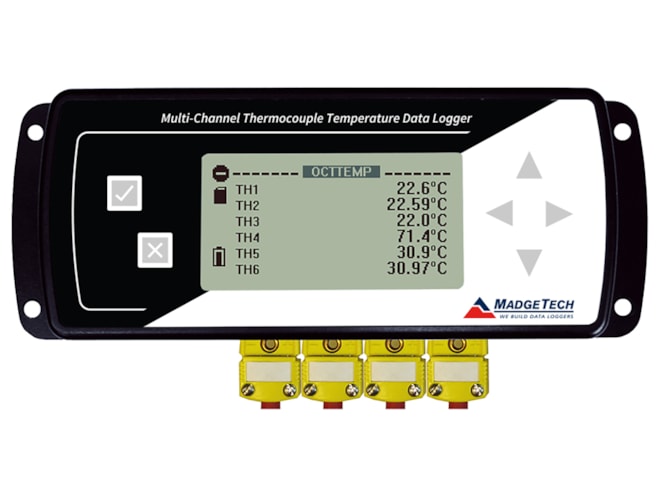

Madgetech OctTemp2000 8 Channel Thermocouple Data Logger
OctTemp 8 Channel Thermocouple Recorder
MadgeTech 4 Data Logger Software Overview

Retired products cannot be ordered

The MadgeTech TCTempX Temperature Data Logger is the recommended replacement

View Company Reviews

Manufactured

By MadgeTech

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual

Features

Accepts thermocouple types J, K, T, E, R, S, B, N
Miniature size
Reusable
Real-time operation
Programmable start time
NIST traceable
User-friendly
Wall mounted universal power adapter included
- 100 to 240VAC input, 9VDC, 670mA output

Requires IFC200 USB Cable & Software Package (Purchased separately)

The Madgetech OctTemp and OctTemp2000 are eight channel, battery powered, stand alone thermocouple recorders. These all-in-one compact, portable, easy to use devices measure and record up to 500,000 measurements per channel. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The OctTemp and OctTemp2000 make data retrieval quick and easy. Simply plug either into an empty com port and the user-friendly software does the rest.

The Madgetech OctTemp and OctTemp2000 accepts J, K, T, E, R, S, B and N type thermocouples. The OctTemp2000 features an LCD display which indicates real-time information from any channel as well as minimum, maximum and average statistics.

OCTTEMP & OCTTEMP2000 data logger software

Thermocouples with subminiature male terminations sold separately.

Applications

Record temperature of perishable goods in transit
Warehouse monitoring
HVAC
Medical/Pharmaceutical
Museum monitoring
Environmental studies
Replace costly strip chart recorders
Implement HACCP programs

Documents

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.
