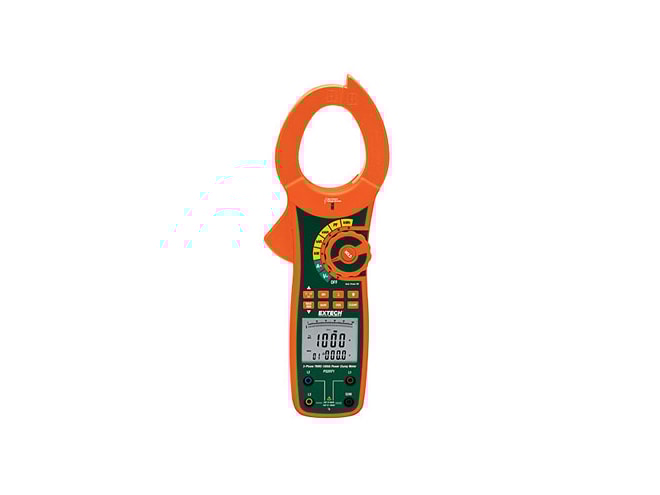

Extech PQ2071 Clamp Meter

Operates as a True RMS Clamp Meter, Power Meter, Multimeter, & AC Voltage Detector, featuring a CAT IV-600V safety rating.

Features

  • Measuring ranges:
    • True Power (kW) up to 750kW
    • Apparent Power(kVA) up to 750kVA
    • Reactive Power (kVAR) up to 750kVAR
    • Active Power (kWh) 9999kWh
    • Power Factor 0.3 to 1
    • Phase Angle (φ) -180 to 180°
    • Frequency measurement to 200Hz
  • 2.16" (55mm) clamp jaw opening
  • Large dual backlit LCD display (9999 count) with bargraph
  • Manually store/recall up to 99 data sets
  • Data Hold, Max/Min, and Auto power off

What's in the Box

  • Test leads
  • Four color-coded leads & alligator clips
  • USB cable
  • PC software
  • 9V battery
  • Soft case

The Extech PQ2071 Clamp Meter operates as a True RMS Clamp Meter, Power Meter, Multimeter, and AC Voltage Detector. Featuring a CAT IV-600V safety rating, the PQ2071 measures AC Current, Voltage, Frequency and Power including True Power, Apparent Power, Reactive Power and Active Power. A USB interface is provided for connection to a PC for data logging function with included software.

Applications for the PQ2071 include:

  • AC Power Quality evaluation
  • Motor/Generator installation and repair
  • Energy Audits

Test Leads

Extech PQ1000 Test Leads
Extech PQ1000 Test Leads

4 voltage test leads with alligator clips.

Mfg. has stock
$176.99

Accessories

Please consider these optional accessories.

Extech 480172 AC Line Separator
Extech 480172 AC Line Separator

Enables use of a clamp meter to measure current on a 2-wire or 3-wire power cord to 15 Amps.

Mfg. has stock
$19.79
