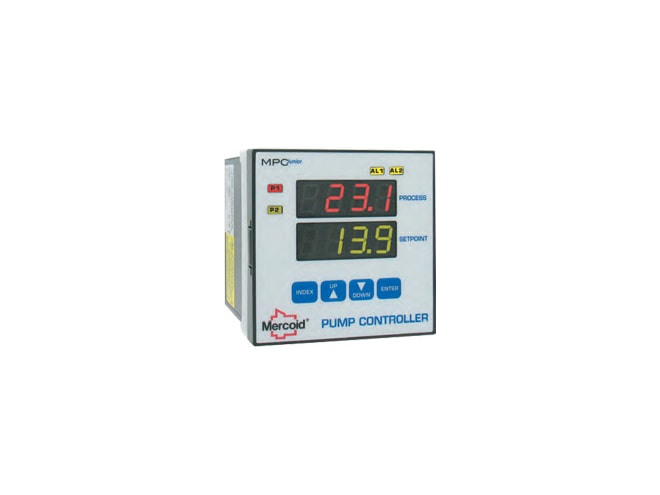

Mercoid MPC Jr Level Controller

Name: Mercoid MPC Jr Level Controller
Price: 708.0 USD
Availability: BackOrder

Versatile level control with programmable level differential for on/off control of one or two pumps, valves, or other devices through two SPDT relays.

Starting at $708.00

View Company Reviews

Manufactured

By Mercoid

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Features

Selectable pump alternation when used with two pumps to minimize pump wear
Integral 24 VDC power supply for transmitter
User selectable security lock-out of programming and/or set points
Optional process input retransmission as a current (4 to 20 mA) or voltage (2 to 10 VDC) analog signal
Analog output on pump "on" condition for activation of separate pump run time meters
Output Ratings:
- Control Relays: SPDT, rated 10A @ 240 VAC res., 1/4 hp @ 120 VAC, 1/3 hp @ 240 VAC
- Alarm Relays: SPST, 3A @ 240 VAC res., 1/10 hp @ 120 VAC
- Others: 15 VDC @ 20 mA for output one and output two
Inputs: 4 (or 0) to 20 mA DC or 2 (or 0) to 10 VDC selectable
Control Type: On/off, reverse (pump out) or direct (pump in) acting
Accuracy: ±0.25% of span, ±1 least significant digit
Nonvolatile memory
Optional RS-232 or RS-485 with Modbus® protocol
CE, cUL, UL approved

The Mercoid MPC Junior Pump Controller provides versatile level control in a standard 1/4 DIN package. Designed for use with almost any style level transmitter the unit displays the present level and main set point value. Incorporated in the MPC Jr. is programmable level differential for on/off control of one or two pumps, valves, or other devices through two SPDT relays. Also featured are two additional programmable alarm contacts with front alarm light indication.

The MPC Jr. is flexible and incorporates a user-friendly programming menu. The front face meets NEMA 4X for outdoor panel mounting.
