Michell Instruments SF52 Dew Point Transmitter

Simple, cost effective sensor designed for use in harsh industrial dryer applications, range -40 to 60°C (-40 to 140°F).

Features

  • Dew point measurement range -40 to 60°C (-40 to 140°F)
  • Ideal for OEM dryer use
  • Accuracy ±2°C (±3.6°F)
  • Fast response
  • IP65 construction
  • 3-Point traceable calibration certificate
  • Voltage or mA outputs

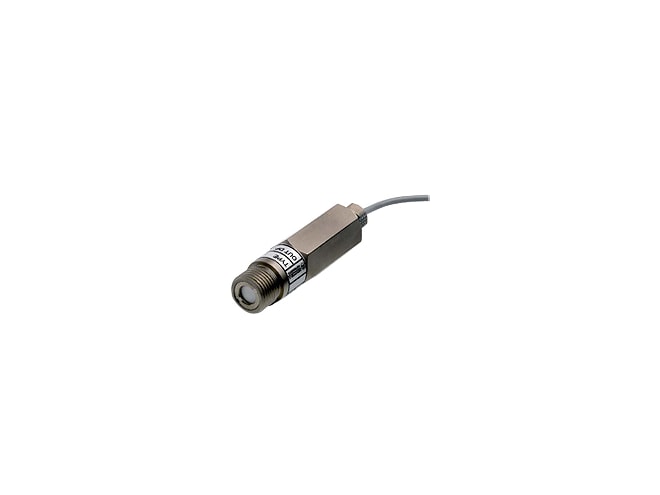

The Michell Instruments SF52 dew point transmitter is a simple, cost effective sensor designed for use in harsh industrial dryer applications where reliability and toughness are required at an economical cost.

The SF52 is available with a choice of G1/2 and 1/2in NPT process connections and voltage or mA outputs. A key feature of the unit is the recessed and protected measuring element giving an extended sensor life cycle. The polymer based sensor is calibrated on a high volume traceable calibration system, providing OEM quantities of units on short deliveries, each with a 3 point calibration certificate.

Michell Instruments A000019 HDPE Filter
Michell Instruments A000019 HDPE Filter

HDPE Filter.

$123.00
Michell Instruments A000340 Bonded Seal
Michell Instruments A000340 Bonded Seal

Bonded seal, (DIN ISO 228) G1/2in (BSP).

$16.00
Michell Instruments A000350 / A000351 Sample Block
Michell Instruments A000350 / A000351 Sample Block

Sample block, (G1/2in BSP only), with or without a filter.

Starting at $128.00
Part Number Price Available
SF52-TX-2-X-D1-N-F2
Show Configuration
$626.00 6 in stock
SF52-TX-2-X-D1-N-F1
Show Configuration
$626.00 2 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 5-6 weeks". Click here to select options
