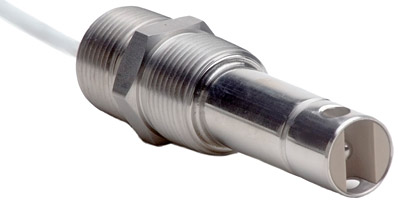

AquaMetrix AM3444 Conductivity Probes

Fixed insertion, boiler/condensate high temperature construction.

Features

  • Max temp
    • 100 PSI at 150°C
    • 500 PSI at 100°C
  • Automatic temperature compensation
  • Stainless steel electrodes
  • PEEK insulators
  • 3/4 inch threaded sensor body

The AquaMetrix AM3444 conductivity probe was designed for high pressure, high temperature conductivity measurements, and is an ideal choice for boiler control applications. Blowdown control,condensate monitoring, leak detection on heat exchangers, and steam purity measurements are just a few of the many applications in which this rugged and reliable sensor can be used.

Wetted materials of construction are 316 stainless steel, PEEK, and EPDM o-rings. All possible leak paths through the sensor are double sealed with o-rings for maximum on-stream reliability. Hot water is a severe environment for any elastomer, and the front seals bear the brunt of chemical attack, allowing the back seals to remain relatively unaffected.

Applications for AquaMetrix AM3444 Conductivity Probes

  • Boiler condensate
  • Blowdown control without coolers
  • Cooling Towers
