AquaMetrix AS Series Conductivity Probes
Noryl shell encapsulated with high temperature epoxy body and 316 stainless steel electrodes
Usually ships in 2-3 weeks
- Manufactured by AquaMetrix
- 3/4" NPT CPVC or SS compression fitting
- Adjustable insertion depth
- Automatic temperature compensation 32 to 221°F (0 to 105°C)
- Graphite electrodes
- Ideal for acidic and corrosive environments
- Flow through or submersible

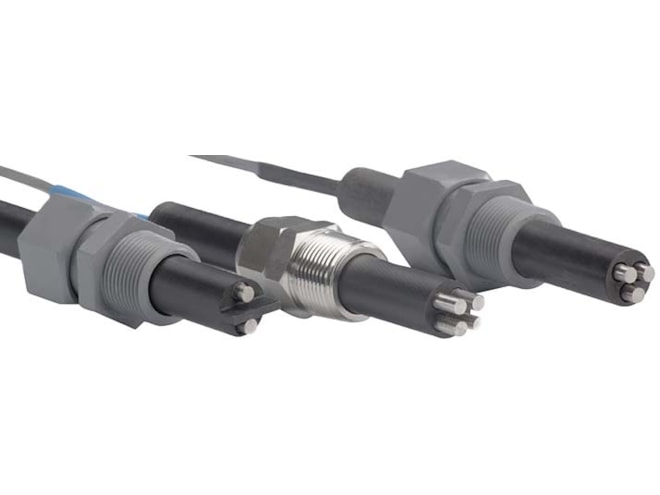

AquaMetrix AS series conductivity probes feature 316 stainless steel electrodes and polypropylene shells that will satisfy just about any industrial, power plant or laboratory application. This technology, insures that, with reasonable maintenance, years of drift-free performance can be expected.
Five cell constants from 0.01 to 50 are available to cover any water sample between pure water and saline conditions. All types are designed with a safety stop shoulder on the cell.
Integral automatic temperature compensation is standard on all types and provides compensation to 25°C when used with a compatible analyzer. Carefully selected thermistors are located in such a way as to give close thermal contact with the liquid being measured to assure fast response to changing temperature.
Flow-through mounting incorporates a special compression fitting which allows adjustable insertion length in 3/4 inch NPT piping or in the side of a tank. This design avoids the nuisance of disconnecting the cell cable when installing or removing the cell for cleaning.
Submersion mounting is achieved by reversing the direction of the compression fitting, allowing the cell to be threaded into the MHMSC mounting hardware. Mounting hardware is available which includes a 2 foot length of CPVC pipe and a simple but versatile adjustable bracket for hanging on the rim of the tank.
Ball Valve ("Hot-Tap") types permit removal of the cell from process piping or from tanks without shutting down the system. They are available with in CPVC.
Applications for AquaMetrix AS Series Conductivity Probes
- Cooling towers
- High purity water applications
- Pharmaceutical Applications
- Reverse osmosis systems
- Food and Beverage
Please consider these optional accessories.
NEMA 4X junction box with integrated terminal strip
