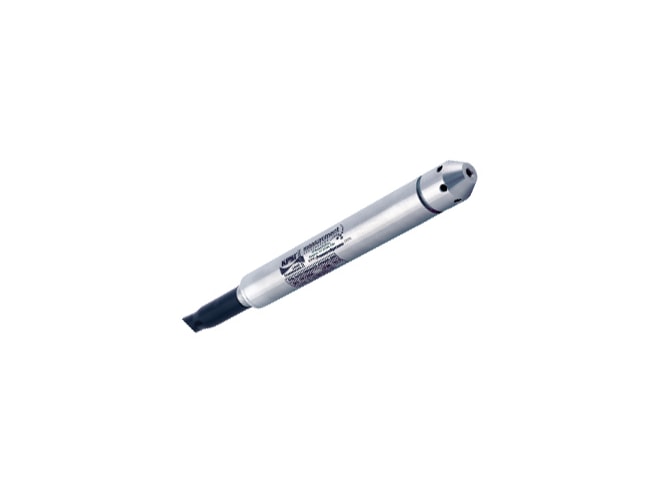

KPSI 342 Level Transducer

Asic technology, small bore 0.75 inch diameter, submersible up to 230ft.

Minimum Order Quantity of 10 Items.
Retired products cannot be ordered

View Company Reviews
Part Number
  • Model 342
Manufactured
Includes

Features

  • Custom Level Ranges up to 230ft (70m) H2O
  • Total Error Band: ±0.25% FS
  • Analog Outputs of 4-20 mA or 0-5 VDC
  • Welded 316 SS or Titanium Construction
  • Small Diameter, Rugged, and Waterproof
  • Two year warranty
  • Operating Temp: -4 to 140ºF (w/polyurethane cable)
  • Protection rating: IP68, NEMA 6P

The KPSI 342 is a small bore submersible hydrostatic level transducer that combines Pressure Systems excellent sensor competencies with the latest in Application Specific Integrated Circuit (ASIC) technology. Pressure Systems' implementation of the ASIC provides unmatched sensor compensation over the entire operating range of the pressure sensor.

Applications include:

  • Surface water monitoring
  • Tailrace and forebay monitoring
  • Oceanographic research
  • Groundwater monitoring
  • Downhole
