KPSI Aneroid Bellows

KPSI Aneroid Bellows for KPSI level transducers.

Retired products cannot be ordered
Please call our engineers if needed

View Company Reviews
Part Number
  • 815
Manufactured
Includes

This product is an accessory for the following products:

KPSI 27 Series Pressure Transducers
KPSI 27 Series Pressure Transducers

30, 50, 100 and 200 psi ranges available, UL and CUL safety approval standards.

Some Models in Stock
Starting at $405.02
KPSI 700 / 720 Level Transducers
KPSI 700 / 720 Level Transducers

5, 10, or 15 psi ranges available with UL and CUL approvals, FM intrinsic safety approval standard available for most versions.

Some Models in Stock
Starting at $564.19
KPSI 705 Level Transducers
KPSI 705 Level Transducers

Teflon coated elastomeric diaphragm, designed for wastewater applications, UL and CUL safety approvals.

Some Models in Stock
Starting at $635.54
KPSI 750 Level Transducer
KPSI 750 Level Transducer

Non-clogging 2.75 inch sensing area with UL and CUL safety approvals for slurry or highly viscous applications.

Some Models in Stock
Starting at $781.18
KPSI 300DS Level Transducer
KPSI 300DS Level Transducer

Deep submersible range of 700 to 4614 ftH2O, small bore 0.75 inch diameter.

RETIRED
KPSI 320 Level Transducer
KPSI 320 Level Transducer

Small bore, 0.75 inch diameter, UL, CUL & FM intrinsic safety approval standard, 20 and 50 psi ranges available.

RETIRED
KPSI 330 / 335 Level Transducer
KPSI 330 / 335 Level Transducer

Small bore, 0.75 inch diameter, submersible up to 700 feet with UL, CUL & FM intrinsic safety approval standard.

RETIRED
KPSI 342 Level Transducer
KPSI 342 Level Transducer

Asic technology, small bore 0.75 inch diameter, submersible up to 230ft.

RETIRED
KPSI 351 / 353 / 355 Level Transmitters
KPSI 351 / 353 / 355 Level Transmitters

SDI-12 serial-digital interface, small bore 0.75 inch diameter, submersible up to 230ftH2O.

RETIRED
KPSI 500 / 501 Level Transducers
KPSI 500 / 501 Level Transducers

1 inch bore diameter, ±0.05%FS total error band over complete operating range, SDl-12 output.

RETIRED
KPSI 735 Level Transducer
KPSI 735 Level Transducer

Submersible up to 700 feet with UL and CUL approvals, and FM intrinsic safety approval standard available for most versions.

RETIRED

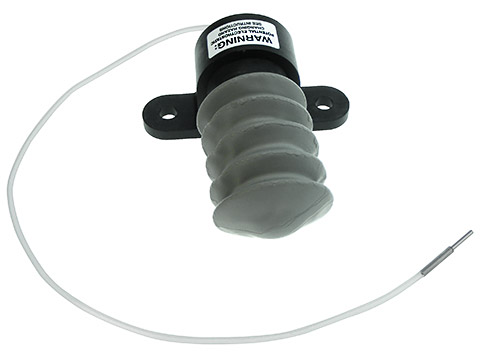

The Aneroid Bellows is a maintenance-free alternative to desiccant filters for moisture protection on vented gauge transducers. Made of flexible neoprene material attached to a polycarbonate mounting bracket, the bellows fluctuates with changes in atmospheric pressure maintaining a constant barometric reference. Note that the use of the bellows results in a closed reference pressure system subject to zero shift errors induced by changing temperatures of up to 0.003 psi/ºC. The bellows is not recommended for use with accuracy requirements of ±0.25% FS or better, nor for ranges < 2 psi.
