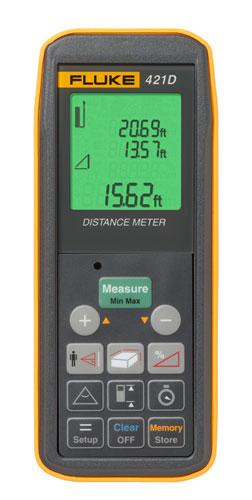

Fluke 421D Laser Distance Meter
Professional grade distance meter measures up to 330 feet
Promotions
Features
- Part number FLUKE-421D
- Manufactured by Fluke
- One-button operation
- Advanced laser technology for distance measurement
- Area calculation
- Pythagoras calculation - indirect distance determination from two other measurements
- Backlit, 3-line display
- Measurement storage
- ±45° Tilt sensor
- Corner angle feature
Includes FREE

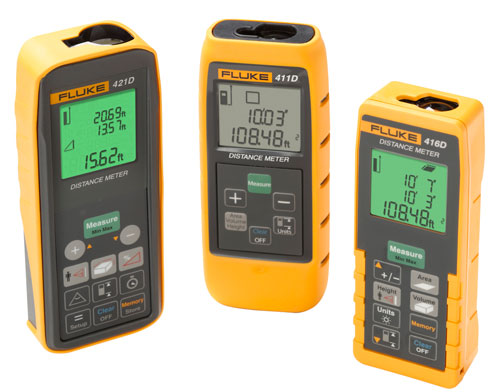

Fluke 411D, 416D, 421D laser distance meters use the most advanced distance measuring technology. These meters are fast, accurate, durable and easy to use; point and shoot one-handed operation. Their simple design and easy one-button operation means you spend less time measuring while increasing the reliability of the answers you need.
The compact and handy Fluke laser distance meters were designed for indoor and limited outdoor applications. With shortcut keys for addition, subtraction, area and volume, measurements could not be simpler. The meters also have a Pythagoras calculation function to determine distance indirectly, from two other measurements. The extra bright laser is clearly visible so you can always see your targeting point if the target object is in a hard-to-reach spot or a long distance away.
The Fluke 421D and 416D have a backlit, three-line display for improved visibility, enhanced Pythagoras calculations for determining distance indirectly form three other measurements, audible feedback of on and off modes, measurement storage for quick recall, min/max function and IP54 water-spray and dust-proof sealing.
Additionally the Fluke 421D has audible feedback for taking incremental measurements, ± 45° tilt sensor for taking indirect measurements in hard to reach areas, a built-in light sensor for activating the backlight and a corner angle feature to determine the angle of a corner. The Fluke 421D can also be mounted to a tripod for measuring long distances.
The Fluke 411D, 416D and 421D ship complete with:
- (2) AAA batteries
- User manual on CD
- Quick start guide
- Nylon carrying case
| Fluke 421C416C and 411D Laser Distance Meters Specifications | |||
|---|---|---|---|
| Feature: | Fluke 411D | Fluke 416D | Fluke 421D |
| Range: | 0.1 m to 30 m (0.33 ft to 100 ft) |
0.05 m to 60 m (0.16 ft to 200 ft) |
0.05 m to 100 m (0.16 ft to 330 ft) |
| Accuracy: | ±3 mm (0.118 in) | ±1.5 mm (±0.059 in) | ±1.5 mm (±0.059 in) |
| Laser class: | II | II | II |
| Laser Type: | 635 nm, < 1 mW | 635 nm, < 1 mW | 635 nm, < 1 mW |
| Automatic Power Off | After 180 seconds | After 180 seconds | After 180 seconds |
| Continuous Measurement | Yes | Yes | Yes |
| Addition/Subtraction | Yes | Yes | Yes |
| Battery Life | up to 3,000 measurements | up to 5,000 measurements | up to 5,000 measurements |
| LCD Illumination | No | Yes | Yes |
| Data Locations | None | 10 | 20 |
| Min/Max | No | Yes | Yes |
| Audible Feedback | No | Yes | Yes |
| Pythagoras (Indirect measurement) | Simple | Full | Full |
| Room angle and stakeout | No | No | Yes |
| ±45° Tilt sensor/indirect measure | No | No | Yes |
| Ingress Protection | IP40 | IP54 | IP54 |
| Dimensions | 123 mm x 50 mm x 26 mm (4.84 in x 1.97 in x 1.02 in) |
135 mm x 46 mm x 31 mm (5.31 in x 1.81 in x 1.22 in) |
127 mm x 52 mm x 29 mm (5.00 in x 2.06 in x 1.13 in) |
| Weight | 150 g (5.29 oz) | 110 g (3.88 oz) | 125 g (4.40 oz) |
Specifications
| Range | 0.16 ft to 330 ft |
|---|---|
| Accuracy | ±1.5 mm |
| Battery Life | up to 5,000 measurements |
| LCD Illumination | Yes |
| Data Locations | 20 |
| Min/Max | Yes |
| Audible Feedback | Yes |
| Pythagoras (indirect measurement) | Full |
| Room angle and stakeout | Yes |
| ±45° Tilt sensor/indirect measure | Yes |
| Ingress Protection | IP54 |
| Dimensions | 5.00 in x 2.06 in x 1.13 in |
| Weight | 4.40 oz |
