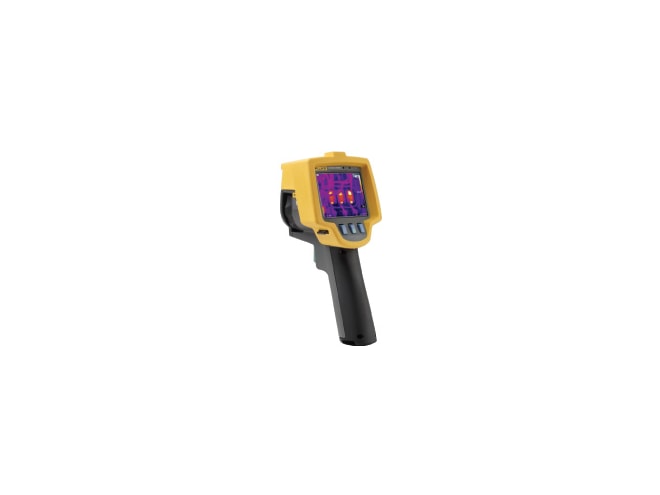

Fluke Ti9 Thermal Imager
19,200 pixels (160 X 120), -4 to 482°F, sensitivity ≤0.20°C, affordable, rugged
Promotions
Availability
Usually ships in 2-3 weeks
Features
- Part number FLK-Ti9 9HZ
- Manufactured by Fluke
- -20 to +250°C (-4 to +482°F)
- 160x120 Detector Resolution
- ±5°C or 5% Accuracy
- 9Hz Refresh Rate
- ≤ 0.20°C at 30°C target temp. (200 mK) Thermal Sensitivity
- 23°x17° Infrared Field of View
- 2.5 mRad Spatial Resolution
- 15 cm (approx 6") Minimum Infrared Focus Distance
- 9.1 cm (3.6") diagonal LCD Display
Includes FREE
You won't find a better or more rugged entry-level thermal imager. Just point and shoot to capture the full picture, showing the hotspots that warn of imminent equipment failure. The 160 x 120 resolution shows all the essential details. That greatly increases the speed of inspecting, repairing and verifying electrical and (electro)mechanical equipment. It also helps extend equipment lifetime and avoid electrical fires.
Rugged and easy to use
Rated to IP54, the Ti9 resists dust and water and withstands a drop test of 2 meters.
The perfect tools to add to your problem solving arsenal. Built for tough work environments, these high-performance, fully radiometric imagers are ideal for troubleshooting electrical installations, electro-mechanical equipment, process equipment, HVAC/R equipment and others.
The Fluke Ti9 Thermal Imager Ships Complete With:- Thermal Imager
- AC Power Supply / Battery Charger (including mains adapters)
- SD Memory Card
- Multi-Format USB Memory Card Reader
- SmartView® Software with Free Software Upgrades for Life
- Rugged Hard Carrying Case
- Soft Transport Bag
- Adjustable Hand Strap
- Printed Users Manual
- Warranty Registration Card
Specifications
| Accuracy | ± 5 °C or 5 % (whichever is greater) |
|---|---|
| Detector | 160 X 120 focal plane array, uncooled microbolometer |
| Total Pixels | 19200 |
| Min (°C) | -20 °C (-4 °F) |
| Max (°C) | 250 °C ( 482 °F) |
| Field of View | 23° x 17° |
| Laser | N/A |
| Digital Camera Function | N/A |
| Thermal Sensitivity | ≤ 0.2 °C at 30 °C (200 mK) |
| LCD Diagonal Size | 9.1 cm (3.6") |
| Video Output | N/A |
| Adjustable Emissivity | N/A |
| Image Rate | 9 Hz |
| Alarms / Isotherms | N/A |
| Box | N/A |
| Moveable Spots | N/A |
| Annotation | N/A |
| Optional Lens (Temp or FOV) | N/A |
| Battery Life (hours) | 4 hours |
| Zoom | N/A |
|
