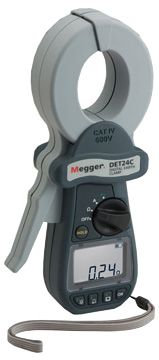

Megger DET14C Clamp-on Ground Resistance Tester
Ground resistance tester measures without disconnecting the ground
Availability
1 in stock
Features
- Part number DET14C
- Manufactured by Megger
- 0.05 Ω to 1500 Ω resistance range
- 0.5 mA to 35.0 A current range
- Large elliptical clamp design
- Smooth mating surfaces on the clamp head
- Visual alarm
- Noise filter function
- Intelligent data hold function
- Data storage with time- and date-stamped results
- CATIV 600 V operation
Includes FREE
The Megger DET14C and DET24C clamp-on ground resistance testers set new standards in terms of access, performance, features, simplicity of operation and safety. The DET14C and DET24C are used to measure earth/ground resistance in multiple loop installations without disconnecting the ground.
Designed with flat core ends, these units prevent dirt build-up, ensuring measurement integrity and improved reliability over products with interlocking teeth. Other enhancements include safety to CATIV 600V, a built-in filter function for electrically noisy environments, time and date stamped stored test results and ultra long battery life. The DET14C logs up to 256 records. The DET24C logs up to 2,000 records and has an opto-coupled IrDA-USB interface to download data. Megger has taken what is now a standard test method and significantly improved its field applicability.
The DET14C and DET24C are designed to quickly measure ground electrode resistance in applications where this type of test method can be used and/or verify the integrity of ground connections. The goal of ground resistance testing is to ensure that the resistance ground electrode system is low enough to prevent or limit voltage rises caused by fault current, electrical surges, lightning strikes, etc.
Clamp-on ground testers work in applications where there is a loop resistance to measure with ground paths in the system (the more ground paths, the closer to the actual resistance). A utility pole ground system is a classic example of this type of application.
Typical end users include:
- Power utilities
- Electrical contractors/electricians
- Specialist grounding contractors
- Electrical testing companies
- Telecommunications companies
- Railroads
- Mining companies
Typical testing applications for the Megger DET14C and DET24C Clamp-on Ground Resistance Testers:
- Pole grounds
- Service entrance/meter ground electrodes
- Service panels
- Pad mount transformer grounds
- Transmission tower grounds - utlility ground cables
- Telephone pedestals
- Telephone cabinets
- Lightning protection ground electrodes
The Megger DET14C and DET24C Clamp-on Ground Resistance Testers ship complete with:
- Carrying case
- Carrying strap (wrist loop)
- User guide CD-ROM
- Calibration check
- Battery AA (Alkaline) (4 required)
- USB IrDA dongle (DET24C only)
- PowerDB Lite software (DET24C only)
Specifications
| Ground Resistance: Range/Resolution/Accuracy | 0.05Ω to 0.99Ω / 0.01Ω / ±1.5% ±0.05Ω
1.00Ω to 9.99Ω / 0.01Ω / ±1.5%± 0.1Ω 10.0Ω to 99.9Ω / 0.1Ω / ±2% ±0.5Ω 100.0Ω to 199.9Ω / 0.1Ω / ±5% ±1Ω 200Ω to 400Ω / 1Ω / ±6% ±5Ω 400Ω to 600Ω / 1Ω / ±10% ±10Ω 600Ω to 1200Ω / 10Ω / ±20% 1200Ω to 1500Ω / 10Ω / ±35% |
|---|---|
| Current Measurement: Range/Resolution/Accuracy | 0.5mA to 0.99mA / 0.01mA / ±2% ±0.05mA
1.00mA to 9.99mA / 0.01mA / ±2% ±0.05mA 10.0mA to 99.9mA / 0.1mA / ±2% ±0.1mA 100mA to 999mA / 1mA / ±2% ±1mA 1.00A to 9.99A / 0.01A / ±2% ±0.01A 10.0A to 35.0A / 0.1A / ±2% ±0.1A |
| Resistance Test Frequency | 1390 Hz |
| Data logging | 256 records |
| Data download | None |
| Continuity | N/A |
| Dimensions | 9.7 x 4.4 x 2in (248 x 114 x 49mm) |
| Weight | 2.17lbs (985g) |
| Operating temperature | -4 to 122°F (-20 to 50°C) |
| Display | 4 + 6 digit with backlight |
| Jaw Window Diameter | 39 mm |
| Jaw Opening | 39 mm x 55 mm |
