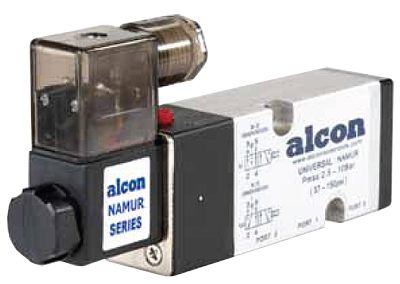

Alcon NAMUR Series Valves
High-speed 3/2 and 5/2 solenoid valves with NAMUR interface for actuator mounting
Availability
Usually ships in 4 weeks
Features
- Manufactured by Alcon
- 3/2 & 5/2 Functions
- Namur interface for actuator mounting
- Zero pressure rated
- Ideal for in-line system service and repair
- Manual override
- Low power LED light
- Dual coil option
- Exd, Exia and Exm compatible
- Max cycle frequency 5/sec
- Pilot actuated spool valve
- 1/4" ports
Alcon NAMUR valves are high-flow, high-speed solenoid valves designed for use in hazardous areas and extreme environments. With universal 5/2 or 3/2 operations and a NAMUR interface for actuator mounting, this series is suitable for piloting single or double actuators for offshore, processing and chemical industries.
Alcon NAMUR valves are zero pressure rated and include a 1/4" NPT port. The valves feature an explosion-proof, submersible, water-tight and dust-tight aluminum body making them suitable for use indoors or out. Nitrile seals ensure reliable operation while meeting requirements for operation in a wide range of environments. A solenoid-activated spool valve system allows for rapid response times of up to five cycles per second and the duty cycle of the coil has been rated for a multimillion-cycle life span.
| Alcon NAMUR Series valve specifications | |
|---|---|
| Port Size | 1/4" NPT |
| Materials | Body: anodized aluminum Flange tube: brass Seals: Nitrile (Buna N) |
| Temperature Range | 14 to 176˚F |
| Operating Pressure Differential | 36-150 psi |
| Voltage | 120VAC or 24 VDC |
| Electrical Connection | PG9 Din Connector DIN 43650/ISO 4400 (EN 175301-803) Form 'A' |
