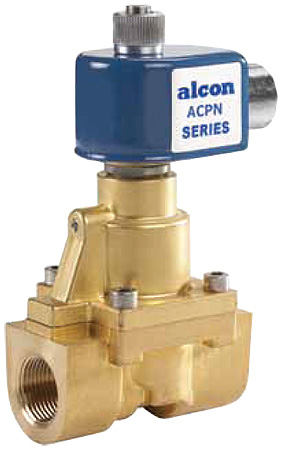

Alcon ACPN Series Valves
2-way, piston operated, large solenoid valves with a normally open flow pattern
Availability
Usually ships in 4 weeks
Features
- Manufactured by Alcon
- Heavy duty valve design
- 3/8", 1/2", 3/4" and 1" NPT ports
- Piston operation
- Wide temperature range capabilities
- Choice of valve body material and seals
- Normally open flow pattern
Includes FREE
Alcon ACPN series valves are 2-way, piston operated, general purpose large solenoid valves with a normally open flow pattern. Available with a range of port sizes, electrical connections and other options, the ACPN series is ideal for a variety of applications including: oil and gas, general industrial, hazardous area environments, and process applications
Alcon ACPN series valves are available with 3/8", 1/2", 3/4" and 1" NPT ports. The valves feature robust brass bodies which allow for operating pressures up to 150 psi and liquid temperatures up to 356˚F (depending upon seal material). The ACPN series is offered with a 1/2" NPT metal conduit hub and 18" leads (NEMA 2 protection class) as an electrical connection. The class H coil insulation is suitable for continuous duty.
Specifications
| Port Sizes | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2" |
|---|---|
| Seal Options | NBR, EPDM, Viton®, PTFE |
| Temperature Ranges | Nitrile (BunaN): 14 to 176˚F
EPDM: -58 to 248˚F Viton®: -4 to 302˚F PTFE: -328 to 356˚F |
| Body Material | Brass 3/8" to 1" port sizes
Bronze 1-1/4" to 2" port sizes |
| Operating Temperature | 14 to 122˚F |
| AC Voltage | 24, 120, or 240VAC |
| DC Voltage | 12 or 24V |
| Electrical Characteristics | Standard coil class: H (Suitable for continuous duty) |
| Power Consumption | 14.5 watts |
| Electrical Connection | 1/2" NPT metal conduit hub with 18" leads (NE MA 2 protection class)
9mm din connector (NE MA 4 protection class) |
| Connection Types | NEMA 2 (Wire)
NEMA 4 (Din) EEXD |
