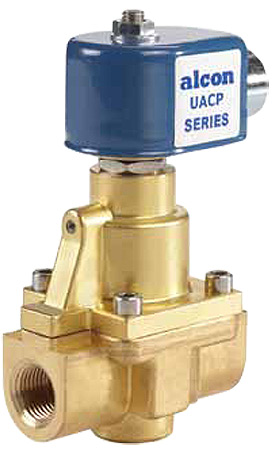

Alcon UACP Series Valves
2-way, piston operated solenoid valves with port sizes from 1/2" to 2"
Availability
Usually ships in 4 weeks
Features
- Manufactured by Alcon
- 1/2", 3/4”, 1”, 1-1/4”, 1-1/2” and 2" NPT ports
- Robust valve design
- Piston operation
- Wide temperature range capabilities
- Brass and bronze body material options
- Normally closed flow pattern
Includes FREE
Alcon UACP series valves are 2-way general purpose large solenoid valves. The UACP valves feature a heavy-duty valve design and piston operation. Available with a range of port sizes, electrical connections and other options, the UACD series is ideal for a variety of applications including: hazardous area environments, floor care, oil and gas, steam, car washes, water industries, general industrial, HVAC, and process applications.
Alcon UACP series valves are available with 1/2", 3/4", 1", 1-1/4", 1-1/2" and 2" NPT ports. The valves feature robust brass or bronze bodies which allows for operating pressures up to 150 psi and liquid temperatures up to 356˚F (depending upon seal material). The flow pattern is normally closed. The UACP series is offered with wire or DIN electrical connection. The class H coil insulation is suitable for continuous duty.
Specifications
| Port Sizes | 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", and 2" |
|---|---|
| Seal Options | Nitrile (BunaN), EPDM, Viton®, PTFE |
| Temperature Ranges | Nitrile (BunaN): 14 to 176˚F
EPDM: -58 to 248˚F Viton®: -4 to 302˚F PTFE: -328 to 356˚F (Steam Series) |
| Body Material | Brass 3/8" – 1" port sizes
Bronze 1-1/4" – 2" port sizes |
| AC Voltage | 24, 120, or 240VAC |
| DC Voltage | 12 or 24V |
| Electrical Characteristics | Standard coil class: H (Suitable for continuous duty) |
| Power Consumption | 14.5 watts |
| Electrical Connection | 1/2" NPT metal conduit hub with 18" leads (NE MA 2 protection class)
9mm din connector (NEMA 4 protection class) |
