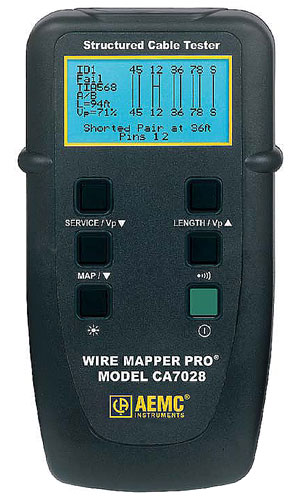

AEMC Wire Mapper Pro CA7028 Cable Tester

0 to 500 ft range; ±5% accuracy; graphical and digital display of fault type and location

$495.00
Buying in Volume?
Requesting a Quote?
Government Buyers

Availability

Usually ships in 1-2 weeks

Need Help? Call us M-F 8 AM to 8 PM ET 1-800-884-4967

Features

  • Part number 2127.82
  • Manufactured by AEMC
  • Handheld LAN cable mapping and troubleshooting tester
  • Indicates all common wiring faults including split pairs, shorts, opens, reversed pairs and crossed wires
  • Unique graphical and digital display of fault information and length
  • Indicates distances to opens and shorts and identifies location
  • Display fault location up to 500 ft. or 150 m (user selectable)
  • Built-in tone generator for tracing and locating cables
  • Built-in service check function to detect telephone, 10BaseT, 100Mbit+ and token ring
  • Visual and audible warning of live telephone network voltages
  • Works with all category cables
  • Large high-visibility blue electroluminescent backlit display
  • Complete with remote unit and mini patch leads
  • Active remote identifiers indicates Pass/Fail at remote end using Green/Red LED
  • Works with TIA 568A/B, USOC and ISDN wiring schemes

The AEMC Wire Mapper Pro CA7028 is a handheld structured cable mapping and troubleshooting tester designed for use on UTP, STP, FTP and SSTP cabling equipped with RJ-45 connectors and wired to either TIA 568A/B (ISO 11801 and EN 50137), USOC, or ISDN specifications. The CA7028 detects open circuit pairs, shorts, crossed wires, crossed pairs, reversed pairs, split pairs, and shield faults.

In the event of opens and shorts, the CA7028 uses TDR technology to indicate if the fault is at the near end or the remote end of the cable or if it is somewhere in between. It will then indicate the distance to the fault.

The AEMC Wire Mapper Pro CA7028 LAN & Cable Tester has the ability to measure and indicate the length of the cable under test using a Vp (Velocity of Propagation) set by the user either manually or from a built-in library. It will measure and report the length of all four pairs of wires in the cable under test. It also generates an audible tone that is transmitted into all four pairs on the cable under test. This can be used for cable tracing and identification in conjunction with a tone reciever.

The AEMC Wire Mapper CA7028 Cable Tester also has the ability to identify telephone and data lines. If the main unit is plugged into an operational RJ-45 socket it will give a continuous warning tone and display if a telephone voltage is present on any of the pins. If the Service Detect key is pressed it will check and display telephone, 10BaseT, 100Mbit+, and token ring active service.

AEMC Wire Mapper Pro CA7028 Cable Tester Applications:

  • Identify LAN wiring faults
  • Find distances (feet or meters) to opens and shorts
  • Test patch cords
  • Trace cable locations
  • Measure cable length
  • Map network layout

AEMC's Wire Mapper Pro CA7028 Cable Testers ship complete with:

  • Soft carrying case
  • Remote ID (#1)
  • (2) patch cords
  • (4) 1.5 V AA
  • Manual
AEMC Wire Mapper Pro CA7028 Cable Tester Specifications:
Measurements
Range 500 ft. or 150 m
Accuracy 5%
Cable Types UTP, STP, FTP & SSTP
Faults indicated Short Circuit Pair, Open Circuit Wire, Short Between Pairs, Split/Cross Pairs, Pair Reversals, Shield Continuity
Fault Location Near end, remote end or distance to fault
Wiring Schemes TIA 568A/B, USOC & ISDN
Service Indication Telephone, 10BaseT, 100Mbit+, Token Ring
Test Inhibit Inhibits testing in the presence of live voltages
Tone Generator Oscillating 810 to 1110 Hz
Voltage Warning Audible and visual warning of TNV (Telecom Network Voltage) presence
General
Display Resolution 128 x 64 pixel graphical LCD
Display Backlight Blue electroluminescent
Fault Display All fault and setting info displayed textually and graphically
Remote Display Green/Red Pass/Fail LED
Auto-off After 3 minutes
Languages English, French, German, Spanish, Portuguese, Italian
Power Source 4 x 1.5 V AA Alkaline batteries
Battery Life Standby mode > 4000 hrs; Continuous testing > 7.5 hrs
Battery Life Indication Bargraph
Storage Temperature -4°F to 158°F (0°C to 70°C); 5 to 95% RH non-condensing
Operating Temperature 32°F to 112°F (0°C to 40°C); 5 to 95% RH non-condensing
Index of Protection IP54
Safety rating EN 61010-1, EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6
CE Mark Yes
