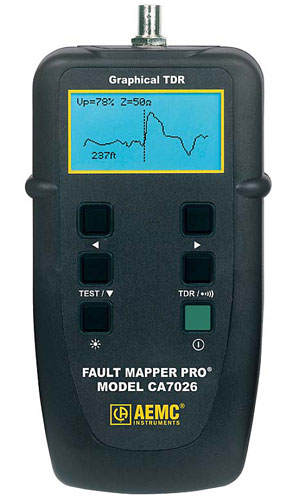

AEMC Fault Mapper Pro CA7026 Cable Tester
0 to 11,700 ft range; ±1% accuracy
Features
- Part number 2127.81
- Manufactured by AEMC
- Handheld graphical TDR (Time Domain Reflectometer)
- Detects opens, shorts, taps, faulty taps, bridge taps, splitters, high resistance, wet cables, splices and more
- Identifies impedance mismatches
- Indicates cable faults and terminations up to 11,700 ft. or 3500 m (user selectable)
- Works with twisted pair, parallel and coaxial cable
- Selectable cable impedance (50 Ω, 75 Ω, 100 Ω)
- Over-voltage protection up to 250 V
- Adjustable cursor assists in locating faults and termination
- Built-in tone generator for tracing and locating cables
- Auto-ranging scale
- Large high-visibility blue electroluminescent backlit display
Includes FREE
The AEMC Fault Mapper Pro CA7026 telephone/coaxial/parallel cable tester is a handheld, graphical TDR (Time Domain Reflectometer) designed for identifying and locating faults on power and communication cables when given access to one end only. The CA7026 measures cable length and indicates the distance to cable faults and terminations to a range of 11,700 ft. or 3500 m (user selectable) on virtually any type of cable of two or more conductors.
The AEMC Fault Mapper Pro CA7026 shows a reflection profile of the cable under test as an oscilloscope- like trace on a 128 x 64 pixel graphical LCD. A movable cursor can be aligned with points on the trace-- the distances displayed will automatically update to the cursor position.
The AEMC Fault Mapper Pro CA7026 has a selectable impedance facility allowing it to be matched to the cable under test. This automatically eliminates the transmission pulse from the display enabling easier identification for short range faults and terminations.
The Velocity of Propagation (Vp) is adjustable between 1% and 99% enabling accurate calibration to the cable under test. The AEMC Model CA7026 incorporates an oscillating tone generator that is detectable with a standard tone receiver, for use in the tracing an identification of cables.
Applications for AEMC Fault Mapper Pro CA7026 Cable Tester:
- Determine length of cable runs
- Find cable faults and the distance to them
- Determine degradation of cables due to moisture and other contaminants
- Trace and identify cables
- Determine telephone cable connections and the length to them
AEMC's Fault Mapper Pro CA7026 Cable Testers ship complete with:
- Soft carrying case
- BNC pigtail cable w/alligator clips
- (4) 1.5 V AA batteries
- Manual
| AEMC Fault Mapper Pro CA7026 Cable Tester Specifications: | |
|---|---|
| Measurements | |
| Range @ Vp = 70% | 11,700 ft or 3500 m (user selectable) |
| Ranges @ Vp = 70% | 670, 1470, 2900, 5830 & 11,700 ft. (220, 440, 870, 1750 & 3500 m) |
| Resolution | Approximately 1% of range |
| Accuracy | ±1% of range |
| Range Selection | Automatic range selection against cursor position |
| Minimum Cable Length | 12 ft. (4 m) |
| Sensitivity | Minimum 3 pixel return on a fault at 6000 ft. (2000 m) |
| Vp (Velocity of Propagation) | Adjustable from 0 to 99% in 1% steps |
| Output Pulse | ±5 V into an open circuit or +1.5 V into 50 Ω load; 25 ns min to 2.15 µs dependent on range |
| Cable Impedance | Selectable between 50, 75 & 100 Ω |
| Tone Generator | Oscillating tone 810 Hz to 1110 Hz |
| Scan Rate | Single shot or 6.7 pulses per second (operator selectable) |
| Voltage Warning | Triggers @ > 10 V AC/DC |
| General | |
| Display Resolution | 128 x 64 pixel graphical LCD |
| Display Backlight | Blue electroluminescent |
| Power Source | 4 x 1.5 V AA Alkaline batteries |
| Auto-off | After 3 minutes |
| Languages | English, French, German, Spanish, Portuguese, Italian |
| Battery Life | Standby mode > 4000 hrs; Continuous testing > 7.5 hrs |
| Storage Temperature | -4°F to 158°F (0°C to 70°C); 5 to 95% RH non-condensing |
| Operating Temperature | 32°F to 112°F (0°C to 40°C); 5 to 95% RH non-condensing |
| Safety | |
| Safety Rating | EN 61010-1, EN 60950, EN 61326-1 |
| CE Mark | Yes |
|
