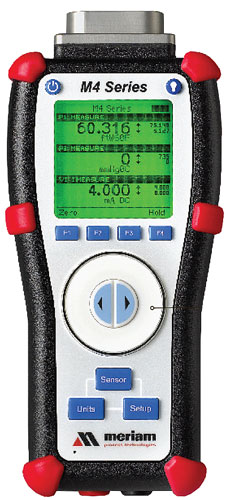

Meriam M402 Electrical Calibrator
Precision handheld electrical calibrator with two pressure sensors and a dataloggling feature
Availability
Usually ships in 4-6 weeks
Features
- Manufactured by Meriam Process Technologies
- Dual pressure sensor - any two gauge, compound or absolute sensors
- Datalogging saved to SD card
- High resolution 2" x 2" display w/selectable backlight
- USB port
- 4 soft keys to quickly access menu functions
- Over-molded Softflex bumpers
- Firmware features:
- Sensor zero, sensor damping, min/max capture, units select, datalogging, datalogging record indicator, selectable off timer, selectable baclight timer, adjustable contrast, adjustable backlight brightness, battery monitor
Includes FREE
The Meriam M402 precision handheld electrical calibrator boasts an impressive array of features, functions and a terrific accuracy specification. The Meriam M402 provides convenient electrical signal measurement and sourcing while also providing two pressure sensors. Already a versatile instrument, the M402 includes a datalogging feature that enhances the unit's functionality of a wide range of applications.
The M402 measures DC voltage to ±50 V and DC current to ±100 mA. Additionally, users can source 24 VDC and measure mA, sink V or mA, or source precise VDC or mA DC values using the supplied test leads. The Meriam M402 calibrator features an accuracy of ±(0.015% of reading + 0.002 units) over the entire operating temperature range. The source or sink values are easily entered using the Adaptive Interface Wheel.
The Meriam M402 includes two pressure sensors available in gauge, compound or absolute pressure types and ranges from -15 to 3000 PSI. Pressure accuracy is up to ±0.025% of reading.
The Meriam M402 electrical calibrator has a single pressure sensor which is user-selectable. Datalogging is standard on the M402 and configured through the "setup" key menu. Pressure, V DC and mA DC values are saved to the SD card at each interval. Data can be moved to a host PC using the supplied USB cable and PC utility or by inserting the SD card in a compatible PC to copy the desired files. The M402 handhelds and SD card supports 100 data files.
| Meriam M402 Electrical Calibrator Specifications | |
|---|---|
| Pressure Measurement | |
| Pressure Ranges | Gauge ranges: from 0 to 300 psi Compound ranges: from -15 to 3000 psi Absolute ranges: from 0 to 38.6 psi |
| Accuracy | ±0.025% of Reading from 10 - 100% FS, ±0.002% of Full Scale under 10% of FS |
| Temperature Performance | Temperature compensated from -20° to 50°C |
| Resolution | Select Accurate digits Right Of Decimal (AROD) or Precision digits Right Of Decimal (PROD) |
| Engineering Units | 32 user selectable pressure units |
| Pressure Limits | 2x range |
| Pressure Connections | 1∕8" NPT (female) |
| Voltage & Current, Measurement, Sourcing, Sinking | |
| DC Voltage | ±50 VDC measure, 0 – 24 VDC source |
| DC Current | ±100 mA DC measure, 0 – 24 mA DC source, 1–24 mA sink at 3-50 VDC external power |
| Accuracy | ±(0.015% of Reading +0.002 units) |
| Temperature Performance | Temperature compensated from -20º to +50º C (-4º to +122º F) |
| Resolution (measure mode) | 0.001 V, 0.001 mA or 0.0001 V, 0.0001 mA (user selectable) |
| Electrical Connections | Standard banana jacks on ¾" centers Firmware updates, data retrieval: USB mini-B (female) |
| General | |
| Loop Power | 250Ω HART® resistor included 24 VDC @ 4mA, 18.5 VDC @ 20mA Four (4) AA alkaline batteries power a transmitter at 20 mA output for 10 hours |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -40 to 140°F (-40 to 60°C) |
| Power (portable service) | Four (4) AA alkaline batteries provides 30+ hours of continuous measurement service |
| Power (operation w\PC) | Power over USB using USB type A to mini-B cable (requires high power 500 mA port) |
|
