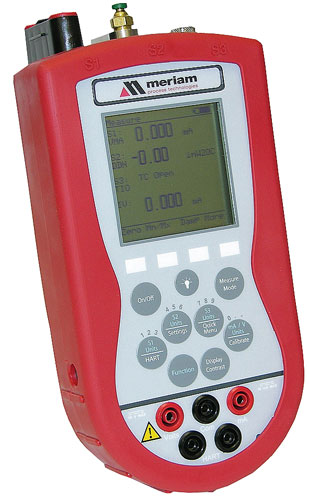

Meriam MFT 4000 Series Modular Calibrator
Modular calibrator with HART communicator
Availability
Usually ships in 3-5 weeks
Features
- Manufactured by Meriam Process Technologies
- 3 Models available: MFT 4000 calibrator, MFT 4005 calibrator w/HART trim, MFT 4010 calibrator with HART
- ABS plastic case with shock absorbing boot
- Key pad w/10 dome contact style buttons and 4 soft keys
- 128 x 128 pixel graphic display
- (6) alkaline or NiMH batteries
- Standard banana jacks
- Data transfer via DB-9 for RS-232C
- Certifications:
- CE Approval
- Intrinsically Safe, Class I, Div I areas per CSA 22.2 & UL 913 by MET Laboratories (optional)
- NIST traceable accuracy
- Current/Voltage: ±0.025% of FS ±0.001% of span per °F
- Modules - positive lock with spring latch
Includes FREE
The Meriam MFT 4000 series modular calibrator is available in 3 models:
MFT 4000 Calibrator
: the MFT 4000 is a base unit for calibration work with selected NIST traceable sensor modules & integral voltage/current meter. Documenting included.MFT 4005 Calibrator with HART Trims
: The MFT 4005 with HART Trims is the MFT 4000 with HART support limited to analog and digital trims for calibration support. Documenting included.MFT 4010 Calibrator with HART
: The MFT4010 includes Base unit for modules and full Device Specific HART communications. Quick Cal displays HART PV and AO along with MFT's NIST traceable measurements. User can identify needed trim(s) and access the trim function(s)from same display. Smart Trim allows selection of analog or digital trims without navigating through menu trees. Documenting included.
Documenting is included with all models of the Meriam MFT 4000 series modular calibrator. Documenting memory stores up to 200 HART configuration files and over 100 calibration results (as-found & as-left data[up to 21 points each], time/date infor, tag). Communication to a PC is possible via a DB-9 connector.
The Meriam MFT 4000 series modular calibrator is an all-in-one-tool that takes the place of multiple handheld instruments, which simplifies the workload and improves productivity. The Meriam MFT 4000 series supports pressure, t/c, RTD, I/P, P/I, switch, loop and mA/V calibrations for conventional or HART transmitter or local indicators.
A variety of positive-lock measurement modules is available for use with the MFT 4000 series calibrator including, differential gauge, vacuum and absolute pressure as well as temperature and voltage/current. A voltage and current meter is integral to the base unit. All HART field devices can be configured, polled and trimmed using HART communications. Device specific commands for supported devices are included with the MFT series.
The Meriam MFT 4000 series modular calibrator have many features for user convenience. Sensor modules and integral V/I can be recalibrated for zero, span and linearity. The meter features a 2.1" x 2.1" display, four soft keys (definitions change with mode requirements) and eight hard keys provide the user interface. The display is configurable for 1 to 4 simultaneous measurements. Other features include auto shut off, damping, min/max value capture, display hold, sensor zero and direct contrast adjustment.
The Meriam MFT 4010 modular calibrator with HART communicator
The MFT 4010 is a break-through combination calibrator/HART communicator that truly reduces the time spent on field calibrations. The MFT 4010 delivers the versatility of a calibrator and the convenience of HART communications in one handheld unit. Users can view up to four measurements simultaneously on the high resolution LCD or compare HART PV and AO values to corresponding values measured by the NIST traceable MFT.
An optional Intrinsic Safety certification by MET laboratories per CSA C22.2 1010.1-92, C22.2 No. 157, and UL913, Fifthe Edition Rev. 2/21/97 for Class I, Div I, Groups A, B, C and D is available.
The Meriam MFT 4000 series modular calibrator ship complete with:
- (2) blank inserts for open sensor bays
- AC power adapter, 100 - 240 V AC for US plug, international plug kit
- Test lead kit
- RS-233 serial communications cable
- Manual
- Protective rubber boot
- DPC manager utility (updates firmware and HART drives)
- HART lead kit w/250 ohm shunt adaptor for HART communication
| Meriam MFT 4000 Calibrator/Communicator Specifications | |
|---|---|
| Base Unit | ABS plastic case with shock absorbing boot |
| Keypad | Overlay keypad w/10 dome contact style buttons and 4 soft keys |
| Display | 128 x 128 pixel graphic display; 5 digit resolution |
| Power | (6) AA Alkaline or NiMH batteries; optional 100 - 240 V AC power adapter |
| Connections | Std. banana jacks (3/4" center) for ±50 mA/Volts DC and for HART |
| Data Transfer | DB-9 for RS-232C |
| Certifications | CE Approval Intrinsically Safe, Class I, Div I areas per CSA 22.2 & UL 913 by MET Laboratories |
| Temperature Specifications | Storage: -40 to 140°F (-40 to 60°C) Operating: 23 to 122°F (-5 to 50°C) |
| NIST Traceable Accuracy | Current/Voltage: ±0.025% of FS ±0.001 % of span per °F |
|
Power Supplies
|
||
|---|---|---|
|
Power Adapter, 100 V AC to 240 V AC, 50 - 60 Hz
|
$117.00 |
|
Batteries/Chargers
|
||
|
|
6-pack of AA 1.2V NiMH Batteries
|
$42.00 |
|
|
Energy 8 NiMH battery Charger (100-240 AC/50 or 60 Hz), Univ. Plug Kit
|
$237.00 |
|
Cases
Carrying cases, spare cases
|
||
|
|
Soft case w/shoulder strap
|
$91.00 |
|
|
ABS plastic carrying case
|
$157.00 |
|
|
Hanging/shoulder strap
|
$20.00 |
|
Accessories
Please consider these optional accessories.
|
||
|
|
Measure and simulation modules for the Meriam MFT 4000 modular calibrator
|
Starting at $832.00 |
|
|
Pressure sensor modules for use with the MFT-4000 series calibrator
|
Starting at $916.00 |
|
|
Pressure pump accessory kit for MFT 4000 calibrator
|
$444.00 |
|
|
Pressure pump accessory kit for MFT 4000 calibrator
|
$444.00 |
|
|
Pressure pump with integral variator, bleed valve, 1/8" FNPT connection 0 to 145 PSIG
|
$414.00 |
|
|
Pressure pump with integral variator, bleed valve, 1/8" FNPT connection 0 to -650 mm Hg
|
$414.00 |
|
|
Repair parts kit for pressure pump B34686 (961P)
|
$98.00 |
|
|
Repair parts kit for vacuum pump B34700 (961V)
|
$98.00 |
|
|
Vacuum 28" Hg to Pressure 600 PSIG
|
$819.00 |
|
|
Vacuum 28" Hg to Pressure 600 PSI/40 BAR
|
$714.00 |
|
|
0 to 10,000 PSIG
|
$1,175.00 |
|
|
0 to 10,000 PSIG
|
$1,175.00 |
|
|
Calibration kit for M100 manometer and M101 calibrator
|
$92.00 |
|
|
1/8" OD tubing to 1/8" MNPT connector (not for use above 250 PSIG)
|
$9.00 |
|
|
1/8" OD tubing union tee (not for use above 250 PSIG)
|
$13.00 |
|
|
1/4" MNPT x 1/8" FNPT reducer bushing, brass
|
$9.00 |
|
|
10 ft. of 1/8" OD nylon tubing (not for use above 250 PSIG)
|
$21.00 |
|
|
Equalizing manifold for DP modules
|
$166.00 |
|
|
5 pcs 1/4" MNPT x HP Quick Connect Fitting (not for use above 9,000 PSIG)
|
$159.00 |
|
|
High Pressure Connection Kit (not for use above 9,000 PSIG)
|
$210.00 |
|
|
High Pressure Connection Kit (not for use above 9,000 PSIG)
|
$110.00 |
|
|
1 pcs 1/8" MNPT HP Quick Connect fitting (not for use above 9,000 PSIG)
|
$35.00 |
|
|
Standard Test Lead Kit - std banana plugs with assorted connectors (inc'd w/ MFT 402X)
|
$26.00 |
|
|
Adapter, standard banana jack (F) to mini-banana jack (M)
|
$19.00 |
