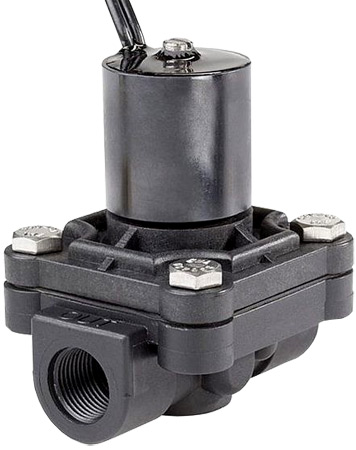

Alcon 900 Series Valves
General purpose solenoid piloted diaphragm valves with 3/8, 1/2 or 3/4-inch ports
Select options for pricing
Minimum Order
8 item minimum.
Availability
Usually ships in 4 weeks
Need Help? Call us M-F 8 AM to 8 PM ET 1-800-884-4967
Features
- Manufactured by Alcon
- 3/8", 1/2" and 3/4" NPT ports
- Normally open and normally closed options available
- Flow range: 30 to 36 gpm @ 150 psi
- Solenoid piloted diaphragm valve
- Buna-N or EPDM seals
- Noryl body
- Electrical connections: 1/4" spade, lead wires, 1/2" conduit male, 1/2" conduit female
- Copper shading ring in AC units
- Maximum fluid temperature: 180°F
Alcon 900 series valves are general purpose solenoid piloted diaphragm valves. Available with a wide range of port sizes, electrical connections and other options, the 900 series is ideal for a variety of applications including: car wash, water industries, general industrial, HVAC, food and beverage, and process applications.
Alcon 900 series valves is available with 3/8, 1/2 or 3/4-inch ports capable of flow ranges up to 36 gpm. The 900 series features a Noryl body and stainless steel internal components which allows for pressures up to 150 psi and liquid temperatures up to 180°F. Flow patterns can be either normally open or normally closed.
Specifications
| Port Sizes | 3/8", 1/2" and 3/4" NPT |
|---|---|
| Seal Options | NBR or EPDM |
| Temperature Ranges | Up to 120˚F (49˚C) |
| Body Material | Noryl |
| Operating Temperature | Up to 120˚F (49˚C) |
| AC Voltage | 12, 24, 120 or 240VAC |
| DC Voltage | 12 or 24V |
| Electrical Characteristics | Standard coil class: A (221˚F/105˚C) |
| Power Consumption | 5 watts AC, 6 watts DC |
| Connection Types | 1/4" spade
Lead wires 1/2" conduit male 1/2" conduit female Strain Relief DIN 43650 Form-B |
| Component Material Combinations | Brass base nut is standard
Stainless steel nut is optional Copper shading ring in AC units Internal components are stainless steel |
| Max fluid temperature | 180˚F (82˚C) |
| Max Flow Range | 3/8" port max flow: 30 GPM at 150 PSI
1/2" port max flow: 36 GPM at 150 PSI 3/4" port max flow: 36 GPM at 150 PSI |
