Features

  • Manufactured by Alcon
  • 1/4" or 3/8” inlet and outlet ports
  • Buna-N, EPDM or Viton seals
  • Delrin body
  • Normally open and normally closed flow patterns
  • Direct acting
  • Multiple connection types available
  • Polyphenylene sulfide coil encapsulant
  • Copper shading ring in AC units
  • Operating temperature varies depending on seal material

Alcon 2000 series valves are general purpose solenoid valves. With a rugged Delrin body, stainless steel internal components, and polyphenylene sulfide encapsulated coil, the 2000 series is well suited for a wide variety of applications including car washes, floor care, water industries, oil and gas, general industry, HVAC, food and beverage, and process industries.

Alcon 2000 series valves are available with numerous options, allowing users to customize the units to fit nearly any application. The valve can be fitted with either 1/4" or 3/8" inlet and outlet ports and four orifice sizes from 1/8" to 1/4" are available. Flows can range from 0.58 to 4.34 gpm with water or 0.20 to 24.8 scfm for air, depending upon on the pressure and orifice size. The 2000 series also includes a number of flow patterns, seal materials, electrical connections and voltages.

While numerous options are available with the Alcon 2000 series valves, not all combinations are generally offered. Certain combinations may be subject to set-up charges. One of our engineers will contact you if such a situation arises. Please contact us for details.

Specifications

Port Sizes1/4" and 3/8"
Seal OptionsNBR, EPDM, Viton®
Temperature RangesN/A
Body MaterialDelrin
AC Voltage24, 120, or 240VAC
DC Voltage12 or 24V
Electrical CharacteristicsStandard coil class: F (311˚F/155˚C)
Power Consumption12 watts AC
14 watts DC

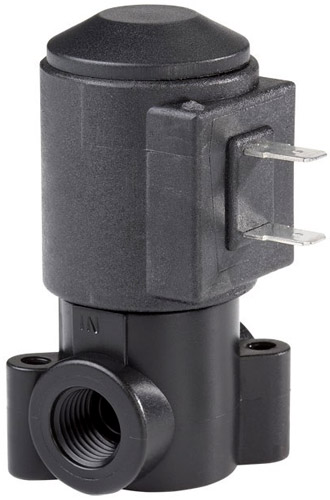

Electrical Connection1/4" spades

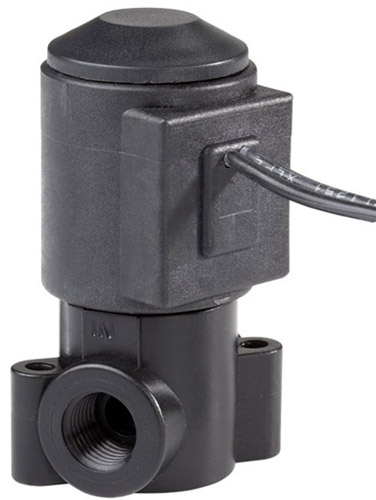

18 AWG, 18" wire leads
DIN 43650 Form-A
