Features

  • Measures TRMS voltages up to 1000 V RMS AC/DC for two, three, four or five-wire systems
  • Measures TRMS currents up to 6500 A RMS (sensor dependent)
  • Color coded input ID markers included
  • Direct measurement of neutral current & voltage
  • Frequency measurement (40 to 69 Hz systems)
  • Record and display trend data as fast as once per second for one month for up to 25 variables
  • Transient detection on all V and I inputs (up to 210)
  • Selectable PT and CT ratios
  • Inrush current measurement
  • Calculation of:
    • Crest factors for V and A
    • K-Factor for transformers
    • Short-term flicker
    • Three-Phase voltage unbalance

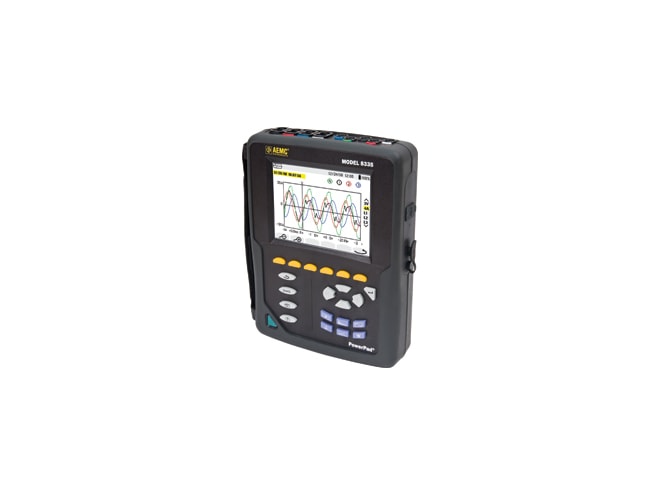

The AEMC PowerPad 8335 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It is intended for technicians and engineers to measure and perform diagnostic work and power quality work on one, two or three phase low voltage networks.

The AEMC PowerPad 8335 has 2 GB of memory that is conveniently partitioned to let you store four different types of data, synchronized or independent of each other. You can store up to 50 screen snapshots, up to 300 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. You can also record trend data for days, weeks or even months.

The AEMC PowerPad 8335 has many great features above and beyond basic TRMS voltage and current measurement. The 8335 can take harmonic measurements (referenced to the fundamental or RMS value) for voltage, current or power, up to the 50th harmonic. Harmonic sequencing and direction, as well as calculation of overall harmonics can be displayed. Also available is a real time display of Phasor diagrams including values and phase angles. The 8335 can monitor the average value of any parameter, which is calculated for a period of 1 second to 2 hours. The 8335 can also measure active, reactive and apparent power per phase and their respective sum total.

Other features of the AEMC PowerPad 8335 also include calculation of power factor, displacement power factor and tangent factor. To assist in troubleshooting the 8335 records, time stamps and characterizes disturbances; swells, sags and interuptions in exceedence of power and harmonic thresholds. The 8335 has ample memory; 2 GB of internal trend recording memory, while keeping alarm, photo and transient inrush memories separate.

The AEMC PowerPad model 8335 ships complete with:

  • (5) 10 ft. black voltage leads
  • (5) black alligator clips
  • (12) color-coded rings
  • USB cable
  • NiMH battery
  • 110/240 V power adapter w/US power cord
  • DataView software
  • Tool bag
  • Soft carrying pouch
  • Manual
AEMC PowerPad 8335 Three-Phase Power Quality Anlyzer Specifications
Electrical
Sampling Frequency 256 samples/cycle
Data Storage 2 GB SD card, 12.5 MB partitioned for snapshot, transients, Inrush, alarms & trend recording
Voltage (TRMS) Phase-to-phase: 2000 V;
Phase-to-Neutral: 1000 V;
Voltage Ratio: up to 500 kV
Current (TRMS) MN Clamp: 0 to 6 A/120 A or 0 to 240 A
SR clamp: 0 to 1200 A
MR Clamp: 0 to 1000 A AC , 0 to 1400 A DC
MiniFlex: 10 to 1000 A
AmpFlex: 10 to 6500 A
Current Ratio: 10 mA to 50 kA
Frequency (Hz) 40 to 69 Hz
Other measurements kW, kVAR, kVA, PF, DPF, kWh, kVARh, kVah, K-Factor, Flicker
Harmonics 1st to 50th, Direction, Sequence
Power Source 9.6 V NiMH rechargeable battery pack (included). External AC supply: 110/230 VAC ±10% (50/60 Hz)
Battery Life ≥ 8 hours with display on; ≤ 35 hours with display off (record mode)
Mechanical
Communication Port Optically isolated USB
Display 1/4 VGA (320 x 240) color LCD display with adjustable brightness & contrast
Dimensions 9.8 x 7.8 x 2.6" (250 x 200 x 67 mm)
Weight 4.3 lbs (1.95 kg)
Safety rating EN 61010-1, 600 V CAT IV, 1000 V CAT III, Pollution Degree 2
Test Leads
AEMC Lead/Alligator Clips
Leads - Set of 5, black 10 ft (3 m) with 5 black alligator clips
