Danatronics iFlaw Digital Ultrasonic Flaw Detector
Ultrasonic flaw detector with 7" touch screen display
Availability
Call for availability
Features
- Manufactured by Danatronics
- 7" touch screen display
- Auto-rotate of landscape or portrait mode
- Auto light sensor for optimum contrast day or night
- IP67 rated
- 8-9 hour battery operation
- Click and drag Gates, Gain, Range and Delay
- Up to 32 GB removable SD card
- VGA (HDMI) output to monitor
- Alarm and USB outputs
- BNC or large lemo connectors
- 30 MHz square wave
- 600 V pulser
- 60 Hz update rate
- Designed and made in the USA
Includes FREE
The Danatronics iFlaw is a portable ultrasonic flaw detector that will meet your every demand. From an angle beam inspection with built-in trig function or dual thickness test with fast 60 Hz display update rate and on-board datalogging to interfacing with encoders and TOFD (Time Of Flight Diffraction) applications, the iFlaw has it all.

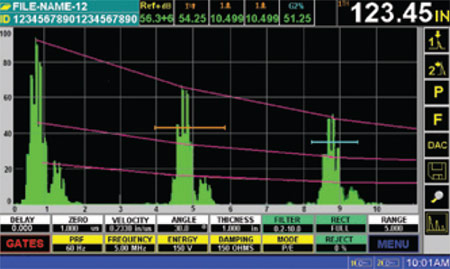

The iFlaw features a simple user interface with click and drag gate start, gate width, gate level for each gate. Gain, delay and range are also intuitive, simple click and drag features. The text editing box can be dragged to any location in the waveform and remembered where it was last positioned. Typically this is up and out of the wave form area such as the top right hand corner.
The Danatronics iFlaw is designed and built with many practical features such as a built in gyroscope to allow the user to automatically rotate the display from landscape to portrait mode. In addition, iFlaw has a built in light sensor that can automatically set the display to the optimal contast. The iFlaw utilizes the latest in high contrast TFT Wide VGA displays for the ultimate in display size, contrast and viewing angle while optimizing battery life.
The iFlaw uses traditional BNC transducers connectors or large Lemo. Connector ports are covered with a rubber boot for environmental sealing. On board memory and up to 32 GB of removable SD cards provides you with essentially unlimited memory. You can leave iFlaw in the field and bring the micro SD card back to the IT facility for complete, independent offloading of data.
The Danatronics iFlaw ships complete with:
- iFlaw w/7" VGA display, touch screen user interface, 30 MHz, square wave pulser, video output, analog output, alarm output, echo to echo, DAC and TVG
- 2GB SD card
- USB cable
- Adjustable stand
- Charger/AC adapter (110-240 VAC)
- Transport case and manual
- (1) Li-Ion battery
Applications for the Datatronics iFlaw Ultrasonic Flaw Detector
- Weld inspections
- Delaminations
- Time of flight diffraction (TOFD)
- Corrosion and thickness sruveys
- ASME, AWS and JIS code compliance
- Boiler tubes
- Pressure vessels
- Storage tanks
- Ship hulls
| iFlaw Digital Ultrasonic Flaw Detector Specifications | |
|---|---|
| Enclosure | Field proven, high impact custom plastic case designed for IP67 rating |
| Stand/Bail | Positions instrument (specify portrait or landscape mode) |
| Dimensions | 8.2" x 6.8" 2.1" |
| Weight | 2.5 - 3.0 lbs (depends on 1 battery or 2) |
| Battery | Lithium Ion - 7.2 V, 5.8 AH |
| Operating time | 8-10 hours with 2 batteries, 4 to 5 hours with 1 battery |
| Charger | Built in. External optional |
| Charge Time | 2 hr 30 min |
| Power requirements | 100 to 240 VAC, 50/60 Hz, 40 W |
| Rubber Boot (optional) | Custom made to protect the unit with chest harness mounting d-clips |
| Display | Color TFT Liquid Crystal Display with 60 Hz update with touch screen, user-selectable, color schemes and brightness, split screen and full screen modes |
| Gyroscope | Automatically can twist the display from landscape to protrait |
| Pixels | 800 x 480 WVGA |
| Backlight | Exterior light based auto or manual adjustable LED backlite |
| Click and drag | Gates, gain, delay and range |
| Amplitude grid modes | 0 to 110% full screen height with 0.25% resolution |
| Thickness/Angle beam resolution | Selectable from .001" or .01" in either straight beam, dual or angle beam. Angle beam includes trig functions of sound path, surface distance and depth to indication accounting independent of leg. X-value correction for angle beam can also be entered and calculated. (Pipe curvature calculations available as an option) |
| Time Base Grid Modes | Standard 0 to 10 division, can be turned off |
| Waveform drawing | Filled or outline |
| Pulser | Tunable square wave pulser |
| PRF | User selectable or Auto from 10 Hz to 1000 Hz |
| Pulser voltage settings | 50 to 600 V in 25 V increments |
| Receiver | |
| Gain | 0 to 110 dB -0.1 dB increments with ±6, 12, 14 dB steps or custom steps |
| Total instrument bandwidth | 0.2 - 30 MHz @ -3 dB |
| See datasheet for complete specifications | |
|
