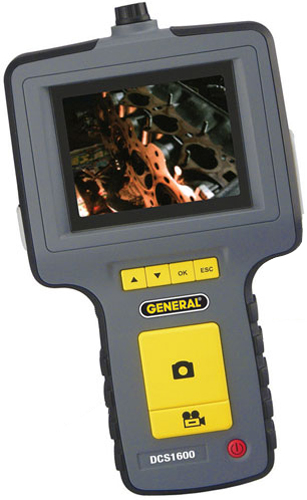

General Tools DCS1600 Video Borescope
High performance, recording video borescope system
Availability
Usually ships in 1-3 business days
Features
- Manufactured by General Tools
- 3.5 in. (88.9 mm) extra-wide, color TFT monitor with super sharp clarity
- Records video and still images with instant playback review
- Comes with a 1m x 5.5mm flexible-obedient probe that retains required shape
- Depth of field is 10 to 60mm (0.4 to 2.4 in.)
- All probes feature adjustable super-strength white LED lights inside the tip for optimized illumination
- All probes are water, oil, dust and scratch resistant to IP67 standards
- 3 interchangeable mirrored viewing tips provide extra wide view angle at 70°, 90°, 110° (standard probe only)
- Optional Click 'N Measure software accessory for sophisticated target analysis
- Multiple language menu
- TV monitor and USB computer interfaces
- Rechargeable internal batteries
Includes FREE
The General Tools DCS1600 high-performance recording video borescope system features an ultra-slim 5.5mm diameter probe, 3.5 in. color monitor and powerful recording capability of image and video. Typical applications for the DCS1600 include aircraft maintenance and inspection, military, security and law enforcement and automotive and diesel maintenance.
The General Tools DCS1600 high-performance recording video borescope system's ultra-slim probe with powerful video camera and LED lights in the tip enable inspection in the tightest of spaces. The DCS1600 takes still photos and dynamic video in real time and the internal SD memory allows users to save a whole video and output later. The AV out allows for transfer to TV monitor and computer interfaces and the DCS1800 features internal rechargeable batteries.
A 1m (3.28 feet) long, 5.5mm (0.22 in.) diameter, flexible-obedient probe that retains required shape is included with the General Tools DCS1600 high-performance recording video borescope system. The probe's depth of field is 10 to 60mm (0.4 to 2.4 in.). The one-handed articulation function is optionally available and allows users to turn the probe tip to inspect targets at sides or at an angle while it is inside a tight space. Additional optional probes available for use with the DCS1600 include a 3.9mm diameter x 1m long ultra-slim probe, 4.9mm x 1m long switchable front/side view probe and 6.0mm x 1m long articulating probe. All probes are water, oil, dust and scratch resistant to IP67 standards.
General Tools DCS1600 High-Performance Recording Borescope System Specifications
| Function | Specification |
|---|---|
| Video Out Format: | NTSC and PAL |
| Interface: | AV Out on 1800 and 1600 systems USB also on 1600 |
| Image Resolution: | 640 x 480 pixels |
| Video Resolution: | 320 x 240 pixels |
| Frame rate: | ~30 fps |
| Exposure: | Automatic |
| White Balance: | Fixed |
| S/N Ratio: | 42dB of more |
| Languages: | English, German, French, Spanish |
| Operating Environment: | -4 to 140°F (-20 to 60°C) |
| Storage Environment: | -4 to 140°F (-20 to 60°C) |
| Recharge Environment | 32 to 104°F (0 to 40°C) |

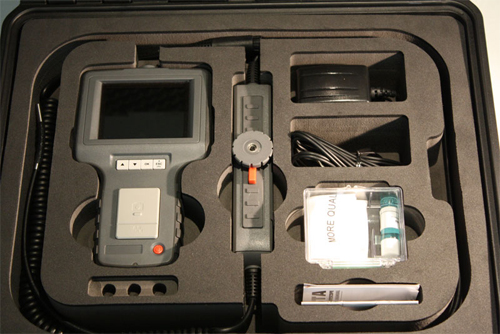

The General Tools DCS1600 high-performance recording video borescope system ships complete with:
- Custom hard case
- 5.5mm diameter x 1m long flexible obedient probe
- 2GB SD memory card
- RCA cable
- 3 interchange mirrored viewing tips (70, 90 and 110°) (standard probe only)
- LCD cleaning cloth
- AC adapter/charger
- Rechargeable battery
- Instruction manual
Documents
Specifications
| Resolution | 76,800 pixels (320 x 240) |
|---|---|
| Display | 3.5 in. (88.9mm) color TFT monitor |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Power Source | Rechargeable Li-Polymer Battery 3.7V |
| Probe Diameter & Length | DCS1600: 5.5mm(0.22in) Diameter x 1m(3.28ft) long
DCS1600ART: 6mm(0.24in) Diameter x 1m(3.28ft) long |
| Field of View | Horizontal field angle 46°
Vertical field angle 34° Diagonal field angle 56° |
| Light Source | Adjustable white LED lights |
| Weight | N/A |
|
