General Tools DCS1800 Video Borescope
High performance, wireless, recording video borescope system
Availability
Popular models in stock. Call for availability
Features
- Manufactured by General Tools
- 3.5 in. (88.9 mm) extra-wide, color TFT monitor with super sharp clarity
- Records audio, video and still images with instant playback review
- Wireless image and video transfer
- Includes a 1m x 5.5mm flexible-obedient probe that retains required shape
- Depth of field is 10 to 60mm (0.4 to 2.4 in.)
- All probes feature adjustable super-strength white LED lights inside the tip for optimized illumination
- All probes are water, oil, dust and scratch resistant to IP67 standards
- 3 interchangeable mirrored viewing tips provide extra wide view angle at 70°, 90°, 110° (standard probe only)
- Optional Click 'N Measure software accessory for sophisticated target analysis
- Multiple language menu
- AV out allows for TV monitor and computer interfaces
- Rechargeable internal batteries
Includes FREE

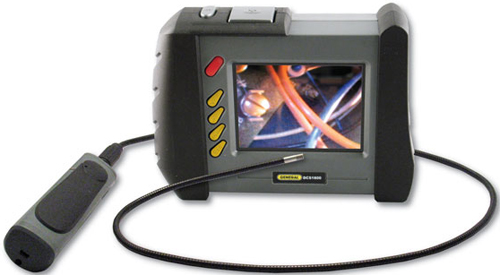

The General Tools DCS1800 wireless data-logging video borescope system features an ultra-slim 5.5mm diameter probe, 3.5 in. color monitor and powerful recording capability of sound, image and video. Typical applications for the DCS1800 include government and military, infrastructure inspection and maintenance, aircraft and automotive maintenance and inspection of complex machinery.
The General Tools DCS1800 wireless data-logging video borescope system's ultra-slim probe with powerful video camera and LED lights in the tip enable inspection in the tightest of spaces. Wireless imaging allows inspection results to be sent to a larger screen up to 150 feet away for team-based analysis. The AV out allows for transfer to TV monitor and computer interfaces and the DCS1800 features internal rechargeable batteries.

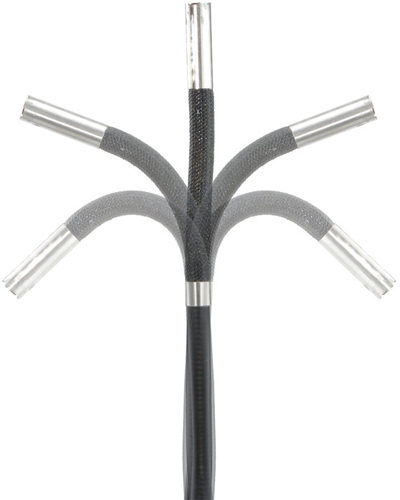

A 1m (3.28 feet) long, 5.5mm (0.22 in.) diameter, flexible-obedient probe that retains required shape is included with the General Tools DCS1800 wireless data-logging video borescope system. The probe's depth of field is 10 to 60mm (0.4 to 2.4 in.). The one-handed articulation function is optionally available and allows users to turn the probe tip to inspect targets at sides or at an angle while it is inside a tight space.
Additional probes are available for use with the DCS1800 and include a 3.9mm diameter x 1m long ultra-slim probe, 4.9mm x 1m long switchable front/side view probe and 6.0mm x 1m long articulating probe. All probes are water, oil, dust and scratch resistant to IP67 standards.
| General Tools DCS 1800 video Borescope | |
|---|---|
| Video Out Format: | NTSC and PAL |
| Interface: | AV Out on 1800 and 1600 systems USB also on 1600 |
| Image Resolution: | 640 x 480 pixels |
| Video Resolution: | 320 x 240 pixels |
| Frame rate: | ~30 fps |
| Exposure: | Automatic |
| White Balance: | Fixed |
| S/N Ratio: | 42dB of more |
| Languages: | English, German, French, Spanish |
| Operating Environment: | -4 to 140°F (-20 to 60°C) |
| Storage Environment: | -4 to 140°F (-20 to 60°C) |
| Recharge Environment | 32 to 104°F (0 to 40°C) |

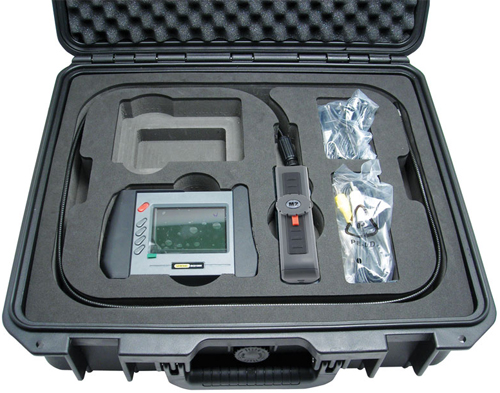

The General Tools DCS1800 wireless data-logging video borescope system ships complete with:
- Custom hard case
- 5.5mm diameter x 1m long flexible obedient probe
- 2GB SD memory card
- RCA cable
- 3 interchange mirrored viewing tips (70, 90 and 110°) (standard probe only)
- LCD cleaning cloth
- AC adapter/charger
- Rechargeable battery
- Instruction manual
Documents
Specifications
| Resolution | 76,800 pixels (320 x 240) |
|---|---|
| Display | 3.5 in. (88.9mm) Color TFT |
| Operating Temperature | -4 to 140°F (-20 to 60°C) |
| Power Source | Rechargeable Li-Polymer Battery 3.7V |
| Probe Diameter & Length | DCS1800: 5.5mm(0.22in) Diameter x 1m(3.28ft) long
DCS1800ART: 6mm(0.24in) Diameter x 1m(3.28ft) long |
| Field of View | Horizontal field angle 46°
Vertical field angle 34° Diagonal field angle 56° |
| Light Source | Adjustable white LED lights |
| Weight | N/A |
|
