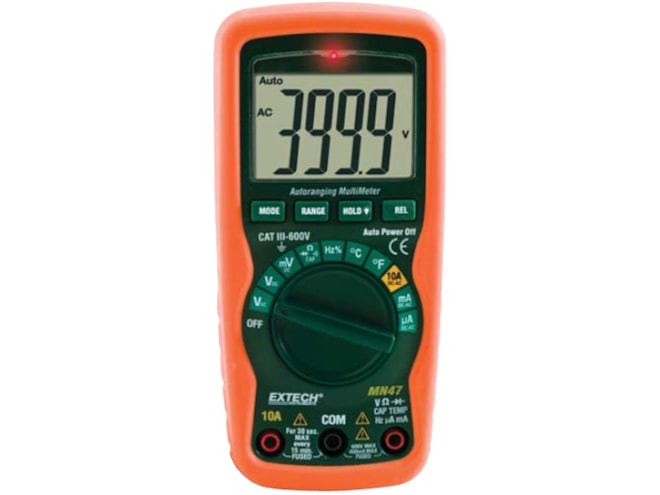

Extech MN47 Compact Digital Multimeter

Twelve functions including AC current, capacitance, frequency, temperature and duty cycle.

Features

  • 0.5% basic accuracy
  • Over-sized high contrast LCD display
  • Double molded housing
  • CAT III-600V
  • Autoranging with manual override
  • 4000 count backlit display
  • AC Current, Capacitance, Frequency, Temperature & Duty Cycle
  • Relative and Data Hold functions

The Extech MN47 compact digital multimeter offers 12 functions as well as non-contact voltage detection. The built-in non-contact voltage detector quickly checks for the presence of voltage from 100 to 600 VAC. Measurements are shown on an over-sized, high-contrast LCD display and double molded housing, the MN42 also offers CAT III-600V protection.

Other features of Extech MN47 compact digital multimeters include autoranging, a 4000-count display and a basic accuracy of 0.5%. The MN47 measures AC and DC voltage to 600V and AC and DC current to 10A. Offering a resistance of 40MΩ, this Extech digital multimeter also features diode/continuity measurement. Additional measurements include capacitance (100 µF), frequency (10 MHz), temperature (1400°F) and duty cycle (0.1 to 99.9%).

The Extech MN47 compact digital multimeter ships complete with:

  • Test leads
  • Type K bead wire probe (-22 to 572°F/-30 to 300°C)
  • 9V battery
  • Carrying case

Extech MN47 Compact Digital Multimeter Specifications

Feature Specification
Ranging Autoranging
Display Counts 4000 backlit
Basic Accuracy 0.5%
NC Voltage Detector 100 to 600 VAC
DC Voltage 600V (0.1 mV)
AC Voltage 600V (0.1 mV)
DC Current 10A (1 µA)
AC Current 10A (1 µA)
Resistance 40 MΩ (0.1Ω)
Capacitance 100µF (1pF)
Frequency 10MHz (0.001 Hz)
Temperature 1400°F (760°C)
Duty Cycle 0.1 to 99.9%
Diode/Continuity Yes
Dimensions 5.9 x 2.75 x 1.8" (150 x 70 x 48mm)
Weight 9oz. (255g)
