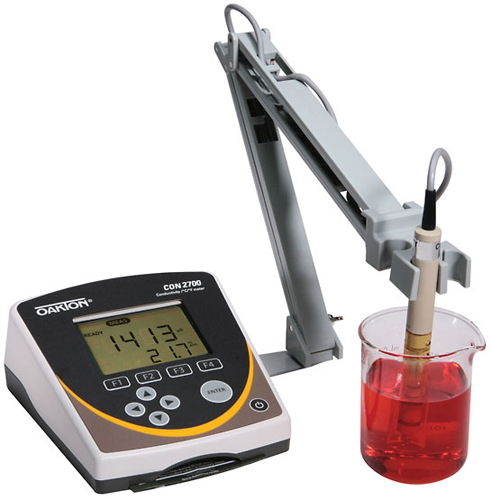

Oakton CON 2700 Conductivity/TDS Meter
Measures conductivity, total dissolved solids (TDS), salinity, resistivity, and temperature
Availability
Usually ships in 1-2 weeks
Features
- Part number WD-35412-00
- Manufactured by Oakton Instruments
- Brilliant backlit display with dynamic stability indication
- Up to 500 point memory with date-time stamp for GLP
- Output data to printer or PC
- Accepts either 2-cell or 4-cell electrodes
- Features auto-standardization, auto-calibration, and auto-ranging
- Calibration due alarm with password protection for setup and calibration
- Measures salinity from 0.0 to 80 ppt and resistivity from 2.000 Ω to 20.0 MΩ
Includes FREE
The Oakton CON 2700 Conductivity/TDS meter measures conductivity, total dissolved solids (TDS), salinity, resistivity and temperature and includes a 500-point memory that includes date and time stamps for for laboratories where GLP data management is required. The CON 2700 offers a new compact design that is over 40% smaller than other benchtop meters. The large display is easy-to-read even at a distance and features stability indication. A calibration due alarm function means no more out-dated calibrations. The water-resistant membrane keypad of the Ion 2700 offers password protection for both set-up and calibration.
While temperature is always displayed from 32 to 212°F (0.0 to 100.0°C), the Oakton Instruments CON 2700 Conductivity/TDS meter also displays conductivity and TDS from 0.050 to 500.0 mS/cm and 0.050 ppm to 500 ppt, respectively. Other features of the Oakton CON 2700 include auto-buffer recognition for both USA and NIST pH buffer sets, automatic or manual temperature compensation, temperature in °F or °C, and display hold.
Multiple pH slopes and offset display enables quick, easy electrode diagnosis with Oakton Instruments CON 2700 Conductivity/TDS meters. The electrode holder can be mounted on either side of the meter. The convenient pull-out, quick-reference card keeps keypad functions at your fingertips. The Oakton CON 2700 ships complete with conductivity/temperature probe, electrode stand and software.
The Oakton CON 2700 Conductivity/TDS Meter Specifications
| Features | CON 2700 |
|---|---|
| Measures | Conductivity, TDS, salinity, resistivity, and temperature (ºF or ºC) |
| Conductivity Range | 0.050 uS/cm to 500.0 mS/cm |
| Conductivity Resolution | 0.01 uS/0.1 uS; 0.001 uS/ 0.01 mS/0.1 mS |
| Conductivity Accuracy | ±1% full scale |
| TDS Range | 0.050 ppm to 500 ppt @ 1.00 TDS factor |
| TDS Resolution | 0.01 ppm/0.1 ppm; 0.001 ppt/ 0.01 ppt/0.1 ppt |
| TDS Accuracy | ±1% full scale |
| Temperature Range | 32 to 212°F (0.0 to 100.0°C) |
| Temperature Resolution | 0.1°F or °C |
| Temperature Accuracy | ±0.5°F or ±0.3°C |
| Memory | Up to 500 data sets with date/time |
| RS-232 | Bi-directional RS-232; includes software |
| Cell Constant | 0.010 to 10,000 |
| Temperature Coefficient | Linear and pure; 0.000 to 10.000% |
| Dimensions | 6-1/8" x 6-7/8" x 2-3/4" (15.5 x 17.5 x 6.9 cm) |
|
