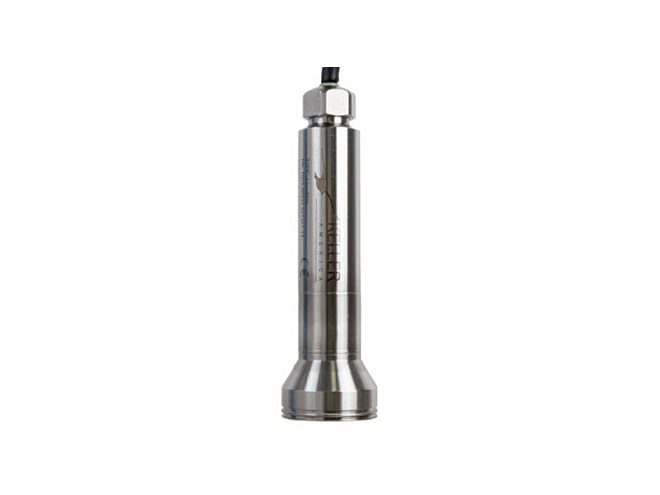

Keller LevelRat Submersible Level Transmitter

Non-fouling, UL/cUL IS-approved level transmitter specifically designed for sewage lift stations for depths up to 100 feet of water.

Features

  • Accuracy includes non-linearity, hysteresis, & non-repeatability
    • ±0.2% FS Static (25°C)
    • ±0.5% FS Total Error Band (TEB)
  • UL/cUL IS-approved
  • 4-20mA output includes guaranteed lightning protection
    • Lifetime warranty against voltage surges
  • Ranges available from 0 to 5 up to 100ftWC
  • 316L SS, Kynar, Polyamide & Fluorocarbon wetted materials
    • Non-fouling Kynar diaphragm for puncture resistance
  • -10 to 60ºC operating temperature
  • IP68 environmental protection
  • 2-year warranty covers defects in materials & workmanship
  • Built in the USA (ARRA Section 1605 Compliant); CE certified

The Keller LevelRat submersible level transmitter is specifically designed for use in environments that would clog a traditional level transmitter. The LevelRat is UL/cUL IS-Approved for use in hazardous locations. The unique Kynar diaphragm combines increased durability and Teflon-like non-stick properties to provide increased service time without maintenance. Additionally, the small profile minimizes accumulated solids, while simplifying installation.

Perfectly suited for pump control applications, the LevelRat is compatible with any standard 2-wire, 4-20mA current loop or 3-wire voltage systems. Additionally, models equipped with 4-20mA analog output include guaranteed lightning protection at no additional cost. This feature protects the transmitter from fast-rising transients and carries a lifetime guarantee against damage from electrical surge.

Optional 1/2 inch NPT male conduit fitting adapts the LevelRat to those applications where hard-mounting by rigid conduit is preferred.

Keller 1820-28-A3 External Surge Protector
Keller 1820-28-A3 External Surge Protector

Lightning/surge protection of power supplies, readouts, and PLCs.

In Stock
$149.00
Keller 900001.0033 Stabilizing Weight
Keller 900001.0033 Stabilizing Weight

Zinc prop shaft anode .

In Stock
$28.00
Keller HU02216001 Cable Hanger
Keller HU02216001 Cable Hanger

In Stock
$30.50
Keller 900001.0034 Termination Enclosure
Keller 900001.0034 Termination Enclosure

NEMA 4X clear front enclosure with liquid-tight cable fittings & a terminal strip, allows for mounting a drying tube or bellows assembly.

In Stock
$240.00
Keller 900001.0002 Drying Tube Assembly
Keller 900001.0002 Drying Tube Assembly

Attaches directly to cable vent tube and intercepts water vapor.

In Stock
$28.50
Keller 900001.0009 Bellows Assembly
Keller 900001.0009 Bellows Assembly

Aneroid bellows attaches to cable vent, alternative to the drying tube.

In Stock
$45.00
FloCat STE-DISP Sensor Termination Enclosure with Display
FloCat STE-DISP Sensor Termination Enclosure with Display

Compatible with any manufacturer's transmitter & moisture protection method, outputs preprogrammed by Instrumart at no cost.

$650.00
Keller 900001.0100 Protective Spacer
Keller 900001.0100 Protective Spacer

Additional stability and protection for use with LevelRat submersible level transmitter in wastewater installations.

In Stock
$175.00

This product can be used in the following applications:

Here's how some of our customers use this product...

Lift Station

The Background: Our customer is a municipal wastewater facility that needs a replacement level monitoring solution in a wet-well lift station.

The Problem: The customer had an existing level meter (of another brand) in place and it failed unexpectedly causing downtime until the replacement could be delivered and installed. Shortening this downtime was the top priority of the customer. As a wastewater application, it’s also important that it is non-fouling.

The Solution: We recommended the Keller LevelRat submersible level sensor. Not only does the LevelRat ship in just a few days, it also has a non-fouling Kynar diaphragm for puncture resistance, a key feature in wastewater applications. The customer bought two, so a spare is now always on hand.

Monitoring the Level of a Water/Hydrocarbon Mix in a Collection Pit

The Background: Our customer is a construction company that needs to monitor the level of a collection pit used as part of a project on which they are currently working.

The Problem: The media within the collection pit is a mix of hydrocarbons and water. Then pit can also inadvertently collect trash which has the potential to foul and equipment used.

The Solution: The Keller LevelRat submersible level transmitter has a non-fouling Kynar diaphragm and is available with Hytrel and Tefzel cable jackets which provide excellent resistance to hydrocarbons and abrasion which may be encountered in the collection pit.

Part Number Pressure Type Pressure Range Cable Length Price Available
2123.01202.023111.13
Show Full Configuration
PSIG
0 to 5
50 feet
 $677.50 15 in stock
2123.01302.023116.13
Show Full Configuration
PSIG
0 to 10
100 feet
 $760.00 15 in stock
2123.01202.023106.13
Show Full Configuration
PSIG
0 to 5
25 feet
 $636.25 14 in stock
2123.01302.023111.13
Show Full Configuration
PSIG
0 to 10
50 feet
 $677.50 13 in stock
2123.00102.023112.13
Show Full Configuration
PSIG
0 to 15
60 feet
 $694.00 12 in stock
2123.00102.023116.13
Show Full Configuration
PSIG
0 to 15
100 feet
 $760.00 1 in stock
2171.01607.023205.13
Show Full Configuration
Feet of Water Column
0 to 20
20 feet
 $843.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 7-10 business days". Click here to select options
