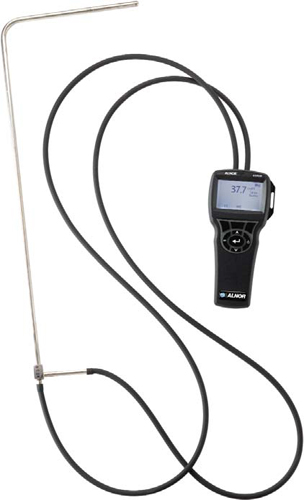

TSI Alnor AXD610 & AXD620 Micromanometers
Measure differential static pressure from -15 to 15in H2O
Availability
Usually ships in 2-3 weeks
Features
- Manufactured by TSI Alnor
- Static/Differential Pressure
- Range: -15 to +15 in. H2O
- Accuracy: ±1% of reading ±0.005 in. H2O
- Velocity From Pitot Tube
- Range: 250 to 15,500 ft/min
- Accuracy: ±1.5% at 2,000 ft/min
- Duct Size (AXD620): 1 to 250 inches in increments of 0.1 in.
- Data Storage (AXD620): 12,700+ samples and 100 test IDs
- Logging Interval (AXD620): 1 second to 1 hour
- User-selectable time constant
Includes FREE
The TSI Alnor AXD610 and AXD620 are easy to use, handheld digital micromanometers suitable for fast, accurate and reliable pressure and air velocity measurements. The AXD620 adds comprehensive functions that include volumetric flow rate calculation, programmable k-factors and datalogging. Premium features make the TSI Alnor AXD610 and AXD620 micromanometers ideal for HVAC commissioning and troubleshooting, testing and balancing, pitot tube duct traverses, static pressure measurements, and differential pressure measurements
AXD610 and AXD620 micromanometers measure differential and static pressure from -15 to +15 in. H2O (-3735 to +3735 Pa) with an accuracy of ±1% of reading ±0.005 in. H2O. When using a Pitot tube, air velocity measurements from 250 to 15,500 ft/min can be made with an accuracy of up to ±1.5%. The AXD620 micromanometer can also measure volumetric flow rates which are dependent upon duct size and k-factors. Additional features of the AXD620 include the ability to record data points in a duct traverse using the sampling function, datalogging of 12,700+ samples with time and date stamp, LogDat2 downloading software and programmable K factors.
The TSI Alnor AXD610 and AXD620 micromanometers ship complete with hard carrying case, four alkaline batteries, operation and service manual and NIST calibration certificate. The AXD620 also includes an 8-foot (2.5 m) rubber tube, static pressure tip, LogDat2 downloading software and USB cable.
Documents
Specifications
| Temperature Range | 40 to 113°F (5 to 45°C) |
|---|---|
| Temperature Resolution | 1° |
| Velocity Range | 250 to 15,500 ft/min (1.27 to 78.7 m/s) |
| Temperature Accuracy | N/A |
| Operating Temp | 40 to 113°F (5 to 45°C) |
| Power Supply | AXD620 Four AA-size batteries or
optional AC adapter AXD610 Four AA-size batteries |
| Battery Life | N/A |
| Velocity Resolution | Resolution 1 ft/min (0.1 m/s) |
| Velocity Accuracy | Accuracy3 ±1.5% at 2,000 ft/min (10.16 m/s) |
| Additional Information | Programmable K factors (AXD620) |
| Pressure Range | -15 to +15 in. H2O (-28.0 to +28.0 mm Hg, -3735 to +3735 Pa) |
| Pressure Accuracy | ±1% of reading ±0.005 in. H2O (±1 Pa, ±0.01 mm Hg) |
| Output | LogDat2™ |
| Time Constant | 1 second to I hour (AXD620) |
| Relative Humidity Range | N/A |
| Relative Humidity Accuracy | N/A |
| Relative Humidity Resolution | N/A |
| Volumetric Flow Range | Actual range is a function of velocity,
pressure, duct size, and K factor |
| Volumetric Flow Accuracy | N/A |
| Volumetric Flow Resolution | N/A |
|
