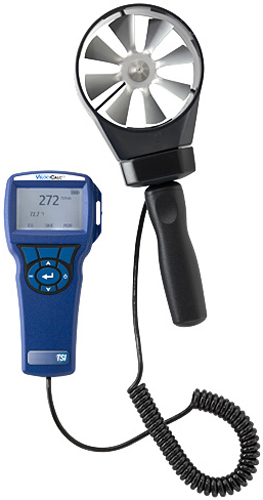

TSI Alnor VelociCalc 5725 Rotating Vane Anemometer
The professional's ideal tool for measuring unevenly distributed or fluctuating flows
Availability
Usually ships in 2-3 weeks
Features
- Part number 5725
- Manufactured by TSI Alnor
- Velocity
- Range: 50 to 6,000 ft/min
- Accuracy: ±1.0% of rdg ±4 ft/min
- Duct Size Range: 0 to 173.6 ft2
- Temperature
- Range: 32 to 140°F
- Accuracy: ±2.0°F
- Resolution: 0.1°F
- Calculates flow rate, performs averaging, and can determine minimum and maximum readings
- Data Storage: 12,700+ samples and 100 test IDs
- Logging Interval: 1 second to 1 hour
- Time Constant: User-selectable
Includes FREE
The TSI Alnor VelociCalc 5725 rotating vane anemometer is a high performance, yet simple to use, rotating vane anemometer. High accuracy and reliability make the VelociCalc 5725 the professional's ideal tool for measuring unevenly distributed or fluctuating flows through heating and cooling coils, diffusers, grilles and filters. With accuracies of ±1.0% (velocity) and ±2.0°F (temperature), the VelociCalc 5725 measures offers wide measurements ranges of 50 to 6,000 ft/min for velocity and 32 to 140°F for temperature.
While accurately measuring air velocity and temperature, TSI Alnor VelociCalc 5725 rotating vane anemometers also calculate flow rate, perform averaging, and can determine minimum and maximum readings. Using sweep mode you can quickly provide one averaged reading of velocity or volume over a large measurement area. The large vane head automatically averages velocity and volume readings. The VelociCalc 5725 includes variable time constant, sampling and statistics functions and data logging capability for 12,700+ samples.
The TSI Alnor VelociCalc 5725 rotating vane anemometer ships complete with a 4-inch (100 mm) vane, carrying case, alkaline batteries, operation and service manual, USB cable with LogDat2 downloading software and calibration certificate.
Documents
Specifications
| Temperature Range | 32 to 140°F (0 to 60 °C) |
|---|---|
| Temperature Resolution | 0.1° |
| Velocity Range | 50 to 6,000 ft/min (0.25 to 30 m/s) |
| Temperature Accuracy | ±2.0°F (1.0°C) |
| Operating Temp | 32 to 140°F (0 to 60 °C) |
| Power Supply | Four AA-size batteries or optional AC adapter |
| Battery Life | N/A |
| Velocity Resolution | 1 ft/min (0.1 m/s) |
| Velocity Accuracy | ±1.0% of reading |
| Additional Information | Reversible 4-inch (100 mm) head to read supply and exhaust flows |
| Pressure Range | N/A |
| Pressure Accuracy | N/A |
| Output | N/A |
| Time Constant | N/A |
| Relative Humidity Range | N/A |
| Relative Humidity Accuracy | N/A |
| Relative Humidity Resolution | N/A |
| Volumetric Flow Range | Actual range is a function of velocity and duct area |
| Volumetric Flow Accuracy | N/A |
| Volumetric Flow Resolution | N/A |
|
