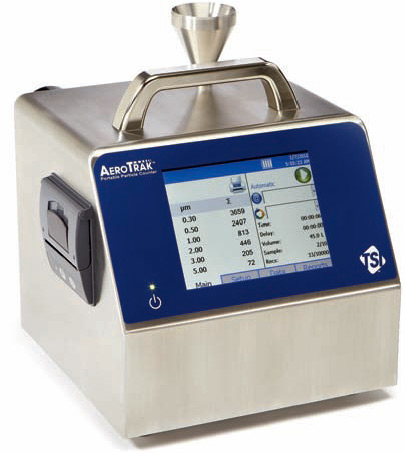

TSI Alnor AeroTrak Particle Counters
Portable particle counters with flow rates to 1.77 CFM (50 L/min) and 0.3 or 0.5 µm sensitivity
Availability
Usually ships in 2-3 weeks
Features
- Manufactured by TSI Alnor
- Flow Rate: 1.0 CFM (9310 & 9510); 1.77 CFM (9350 & 9550)
- Particle Size Range: 0.3 to 25 µm (9310 & 9350); 0.5 to 25 µm (9510 & 9550)
- Up to 6 channels of simultaneous data
- 10,000 sample record storage, 999 locations
- Ethernet and USB outputs
- Reports for ISO 14644-1, EU GMP Annex 1 and FS209E
- Complies with all requirements of ISO 21501-4
- Stainless steel enclosure
Includes FREE
Trade-in your existing particle counter and receive a $1,000 allowance when you trade-up to a TSI Alnor 9310, 9350, 9510 or 9550 AeroTrak Particle Counter.
Click for more information
The TSI Alnor 9310, 9350, 9510 and 9550 AeroTrak portable particle counters offer best-in-class features and versatility. Compatible with TSI Alnor's accurate ventilation probes that measure air velocity/temperature, these particle counters provide you with a complete solution for your certification needs. The AeroTrak series includes lightweight, stainless steel enclosures and can be utilized as a stand-alone units or integrated into facility monitoring systems.
The TSI Alnor 9310 and 9510 AeroTrak particle counters offer a flow rate of 1.0 CFM (28.3 L/min) while the 9350 and 9550 AeroTrak models have a flow rate of 1.77 CFM (50 L/min). All four models feature ±5% accuracy which meets ISO 21501-4 and JIS B9921 standards. With a 5.7-inch VGA touch-screen display, these TSI Alnor particle counters can display up to six channels of simultaneous data and store 10,000 samples. Ethernet and USB outputs make transferring data to a PC easy.
Complying with all the stringent requirements set forth in ISO 21501-4, these TSI Alnor AeroTrak particle counters can generate pass/fail reports for ISO 14644-1, EU GMP Annex 1 and FS209E. The TSI Alnor 9310, 9350, 9510 and 9550 models ship complete with a printed QuickStart guide, operating manual on CD, power supply, battery, barbed inlet, isokinetic probe, tripod tubing, purge filter, printer paper, USB cable and TrakPro Lite software.
|
Cases
Carrying cases, spare cases
|
||
|---|---|---|
|
Carrying cases designed for use with the TSI Alnor AeroTrak 9310, 9350, 9510 and 9550 particle counters
|
Starting at $460.00 |
|
Probes
|
||
|
|
Filter scanning probes designed for use with the TSI Alnor AeroTrak particle counters
|
Starting at $425.00 |
|
|
Electronic filter scanning probes designed for use with the TSI Alnor AeroTrak particle counters
|
Starting at $540.00 |
|
|
Straight or articulated air velocity probes with velocity and temperature capabilities
|
Starting at $685.00 |
|
|
Stainless steel construction with 1.0 CFM and 1.77 CFM flow rates available
|
Starting at $130.00 |
|
Accessories
Please consider these optional accessories.
|
||
|
|
Stainless steel inlets available with 1.0 CFM and 1.77 CFM flow rates
|
Starting at $110.00 |
|
Various sizes of tubing designed for use with the TSI Alnor AeroTrak particle counters
|
Starting at $65.00 |
