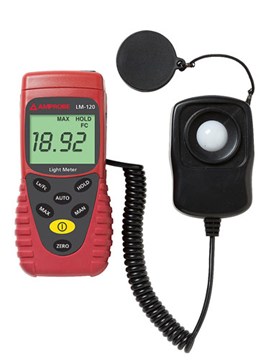

Amprobe LM-120 Light Meter with Auto-Ranging
Auto-ranging light meter that measures indoor illumination levels to maximize lighting efficiency
Availability
Usually ships in 1-2 weeks
Features
- Part number LM-120
- Manufactured by Amprobe
- Ranges:
- 20, 200, 2000, 20000, 200000 lux
- 20, 200, 2000, 20000 foot candles
- Accuracy:
- ±3% (Cal. to std. incand. lamp at 2854°K)
- 6% other visible light sources
- Resolution: 0.01 fc/lux
- 3-3/4 digit LCD display
- Sampling rate: 2.5 times/sec
Includes FREE
The Amprobe LM-120 light meter with auto-ranging measures the visible light from fluorescent, metal halide, high pressure sodium or incandescent sources. It is a portable, easy-to-use meter designed to allow users to reduce the energy burden of a building by increasing the efficiency of its lighting system. With the LM-120, users can quickly determine the indoor illumination level and adjust the output level of lighting fixtures accordingly.
The Amprobe LM-120 displays light levels in either Lumen (lux) or footcandle (fc) units. The unit can be selected by a switch on the front panel. LM-120 meters have a reliable silicon photodiode sensor and filter and includes ranges up to 20,000 fc or 200,000 lux with an accuracy of ±3% and a resolution of 0.01 fc/lux. This meter is autoranging plus manual ranging with the ability to zero out the reading before taking a measurement. The data hold feature can be used to freeze readings on the digital display while the MIN/MAX function shows high and low readings. The meter also has an auto power-off to save battery life.
Documents
Specifications
| Range | 20, 200, 2000, 20000, 200000 Lux
20, 200, 2000, 20000 Foot candles |
|---|---|
| Accuracy | ±3% |
| Memory | MIN / MAX |
| Display | 3-3/4 digit liquid crystal display (LCD) |
| Dimensions | Base: 5.1 x 2.5 x 1.5in (130 x 63 x 38mm)
Sensor: 3.2 x 2.2 x 1.1in (80 x 55 x 29mm) |
| Weight | .48lb (220g) includes battery |
| Operating temperature | 14 to 122°F (-10 to 50°C) |
| Sensor | Silicon photodiode and filter |
