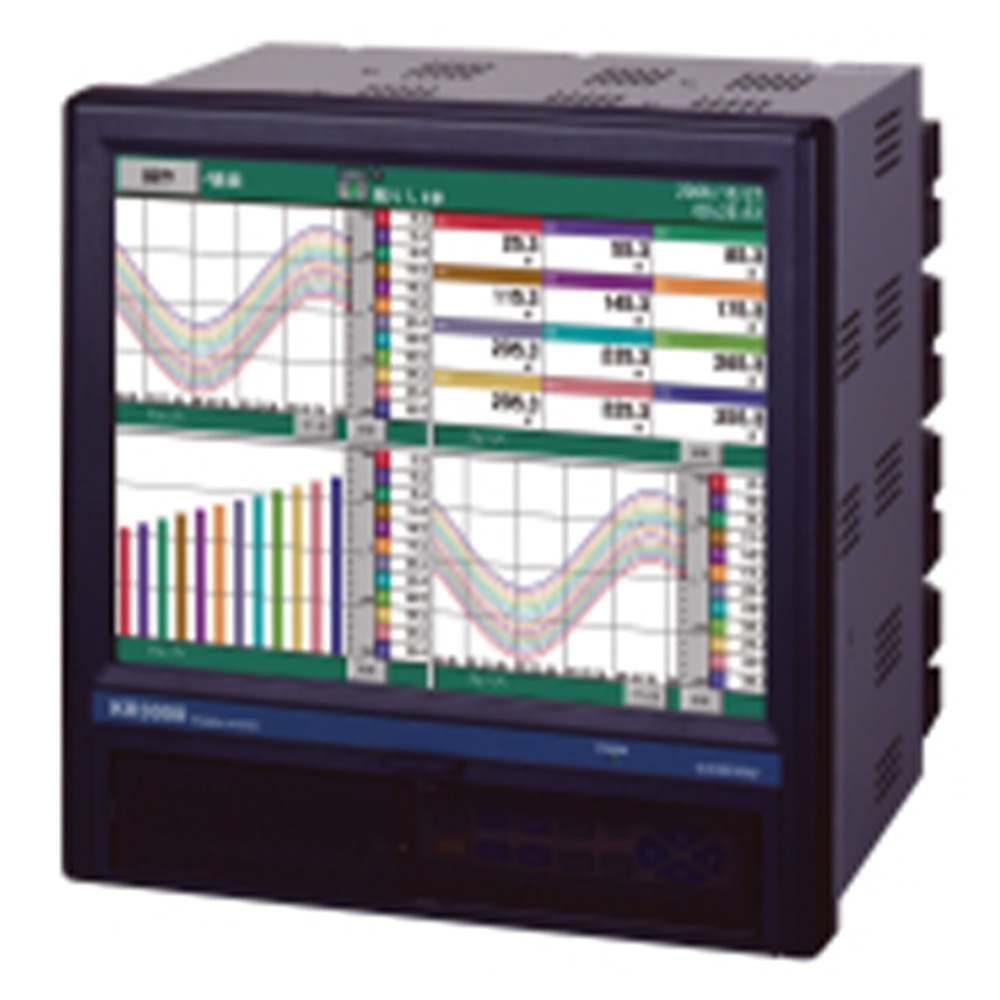

CHINO KR3000 Series Graphic Recorder
High performance, network-compatible paperless recorders with 12" LCD
Usually ships in 2-3 weeks
- Manufactured by CHINO
- 12, 24, 36 or 48 channels
- Sampling rates: 100 ms or 1 second
- Universal Inputs
- Resistance thermometer
- DC Voltage / current (via shunt resistor)
- 100 to 240 V AC power supply
- Internal memory (136MB)
- External memory (Compact Flash Card up to 2GB)
- 12.1" TFT color LCD display
- Ethernet/LAN connectivity
- USB port
- Up to 4 alarms per channel
- Optional digital input
The CHINO KR3000 Series are network-compatible paperless graphic recorders with high performance features and functions. The 12.1" TFT color LCD display is highly visible and the large size makes it easy to see from a distance and in poorly lit environments.
The CHINO KR3000 Series recorder has a variety of display types. The measured data display includes a trend screen, data screen and bar graph screen. The historical trend display can be viewed simultaneously with a real-time trend display. The information display shows alarms, a marker list and file list. The setting screen shows computations, memory, system maintenance and communications. The CHINO KR3000 Series recorder has 136 MB of internal storage and a compact flash card slot for additional external memory.
The CHINO KR3000 is capable of high-speed recording at approximately 100 ms for 12 points with ±0.1% accuracy. Programming and basic operation functions are simplified with dedicated function keys. The USB port allows for connection to a PC or lap-top for managing recorder data, data transfer or alarm management. The CHINO KR3000 Series recorder has a standard Ethernet port supporting LAN connectivity. Communication functions via the Ethernet port include: FTP server/client, web server and email. Optional digital input can be used for recoding on/off signals, pulse input (max 10Hz), and remote contacts.
