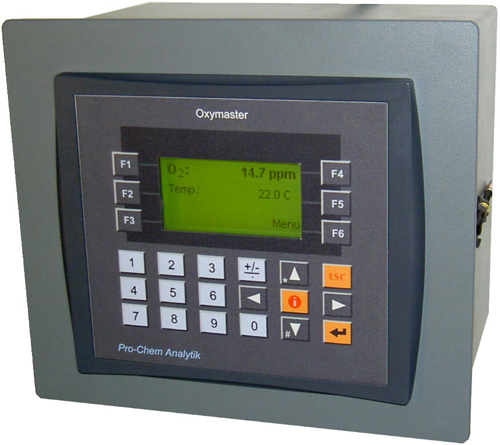

Pro-Chem Analytik OxyMaster II Oxygen Analyzer
Designed for the fast, accurate and economic measurement of trace level oxygen
Usually ships in 2-4 weeks
- Manufactured by Pro-Chem Analytik
- Measuring Range : 0 to 10,000 ppm O2 (Lowest Range: 0 to 10 ppm)
- Dew Point Range: -100 to +20°C
- ± 2% FSD (T= constant)
- ± 5% FSD over full temperature range (at 0 to 10 ppm ± 1ppm)
- ±2°C dew point
- Resolution: 0.1 ppm
- Response Time:
- 90% of FSC at 25°C
- 0 to 10 ppm < 45 sec
- -20°C to –60°C < 60 sec.
- Pressure: 0.1 to 1 bar
- Outputs: 2 x 4 -20 mA/DC isolated
The Pro-Chem Analytik OxyMaster II oxygen analyzer was created for fast, accurate and economic measurement of oxygen at trace levels. The OxyMaster II is available in 3 versions; the 16T, which measures trace oxygen only, and the 16TDP and 16TCO which include dew point and carbon monoxide measurement, respectively. All versions of the Pro-Chem Analytik OxyMaster II have simple menu-driven software, touch pad, and large LCD-display allowing for easy and fast start-up of the OxyMaster II analyzers.
A freely programmable concentration alarm, as well as a system alarm, gives the Pro-Chem Analytik OxyMaster II the versatility to meet any measurement requirements. Two 4-20mA outputs are available for oxygen concentration and secondary paramter and this Pro-Chem Analytik meter can log up to 10,000 readings. RS-232 communication is also available. The calibration for trace oxygen is done with a calibration gas and the concentration can be chosen freely within the measuring range.
Other benefits of the Pro-Chem Analytik OxyMaster II meter include its compact size, long sensor life and there is no range switching required. The OxyMaster II can be used as a standalone unit.
