Watlow Silver Series Operator Interface Terminal
Full-featured, touchscreen operator interface terminal (OIT) with Ethernet communications
Availability
Usually ships in 1-2 weeks
Features
- Manufactured by Watlow
- 400Mz 32-bit RISC fanless processor
- 128MB Flash, 64 MB DRAM memory
- 10/100 Base-T (RJ45) Ethernet port
- Serial ports
- COM1: RS-232/RS-485 (All sizes)
- COM2: RS-232 (7 & 10 inch sizes only)
- COM3: RS-232/RS-485, 2-wire (7 & 10 inch sizes only)
- USB Host (Type A): None (4.3 in), 1 ea (7 in); 2 ea (10 in), ver. 1.1
- USB Client (Type B): 1 ea ver. 2.0
- SD card slot (7.0 & 10.0 inch sizes only)
- Includes drivers for EZ-Zone family
Includes FREE

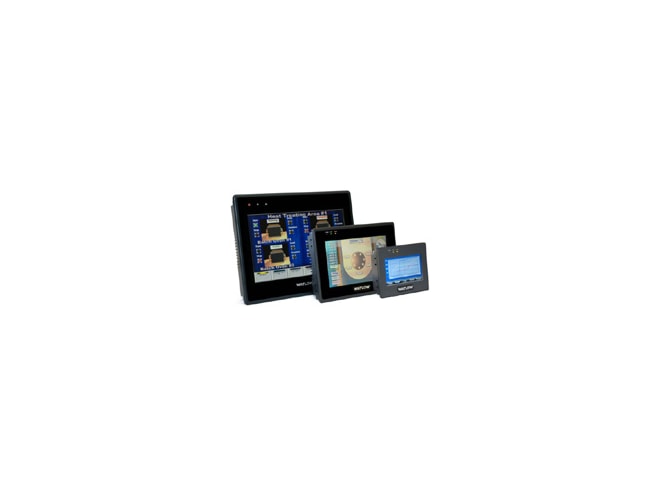

The Watlow Silver Series Operator Interface Terminal is a rugged, touchscreen operator interface terminal (OIT) available in three wide-screen models (4.3 in., 7 in. and 10 in.).
- The Silver Series operator interface terminals support a full set of features including:
- Serial and Ethernet communications
- Universal serial bus (USB) (7 & 10 inch sizes only)
- Secure digital (SD) card (7 & 10 inch sizes only)
- Data logging
- Flexible password security and multiple language support
The small bezel size and nominal two-inch depth of the Watlow Silver Series Operator Interface Terminal make mounting in tight spots easy.
The Watlow Silver Series Operator Interface Terminal programming software, EasyBuilder5000, features a large variety of built-in screen objects that makes it easy to use and very powerful. The user can call upon extensive graphics libraries, import custom graphics and add numeric displays, entry fields, analog meters, bar graphs and trend graphs with just a few mouse clicks.
Screen objects on the Watlow Silver Series Operator Interface Terminal are highly customizable and the user can create libraries of their own objects for repeat use. The online simulator and the Ethernet and USB ports make testing and downloading fast. EasyBuilder5000 is part of the EZware-5000 software suite and is available as a FREE download.
Documents
- Watlow Silver Series Operator Interface Terminal Data Sheet PDF (2.0 MB)
- Watlow Silver Series Operator Interface Terminal Manual PDF (4.4 MB)
- Watlow Silver Series Operator Interface Terminal Installation Guide (783 KB)
- Watlow Silver Series Operator Interface Terminal Installation/Operation Manual Addendum PDF (2.7 MB)
- All possible part numbers
|
Cables
|
||
|---|---|---|
|
Communication cable for Watlow Silver Series Operator Interface Terminals TS00-0043-0000 or TS00-0043-E000
|
$67.00 |
|
|
Communication cable for Watlow Silver Series Operator Interface Terminals TS00-0070-0000 or TS00-0100-0000
|
$67.00 |
|
|
5-foot USB cable for downloading projects from a PC to the Watlow Silver Series operator interface terminal
|
$16.00 |
|
Power Supplies
|
||
|
|
Power supply for Watlow Silver Series Operator Interface Terminals
|
Starting at $65.00 |
|
Accessories
Please consider these optional accessories.
|
||
|
|
Protective screen covers for the Watlow Silver Series Operator Interface Terminal
|
Starting at $46.00 |
