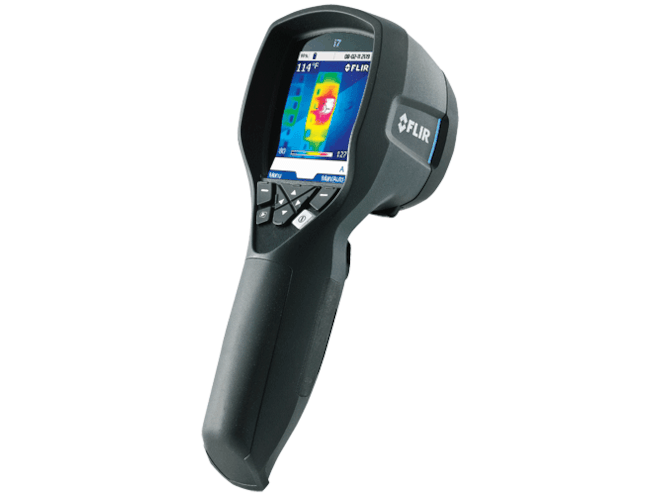

FLIR i7 Compact Infrared Camera
19,600 pixels (140 x 140), -4 to 482°F, sensitivity < 0.1°C, lightweight
See other Flood Remediation Products
Promotions
Availability
Select options to see availability
Features
- Manufactured by FLIR
- Temperature Range: -4°F to 482°F (-20°C to 250°C)
- Thermal Sensitivity (N.E.T.D): <0.1°C at 25°C
- Emissivity: Emissivity Table; 0.1 to 1.0 adjustable
- Spectral Range: 7.5 to 13μm
- Field of View: 29° x 29°
- Minimum Focus Distance: 0.6m (2 ft.)
- Measurement Modes: Spot (with correction for emissivity and reflected temperature), Area (Max/Min), Isotherm (above/below selected temperature interval)
- Image Storage: 5000 Images (microSD card memory)
- Display: 2.8" color LCD
Includes FREE
The FLIR i7 thermal imaging camera is an easy-to-use troubleshooting tool, weighing only 12 oz. Although compact in size, the FLIR i7 boasts a high accuracy of 2%, along with a thermal sensitivity of 0.1°C which is critical for condition monitoring of thermally sensitive targets. FLIR i7 thermal imaging cameras also offers a temperature range of -4°F to 482°F (-20°C to 250°C) and a spectral range of 7.5 to 13µm.
The FLIR i7 compact infrared camera's viewing capabilities include a high resolution, 2.8" (71mm) color LCD and a convenient focus-free lens. The display offers a 29° x 29° field of view with a minimum focus distance of 0.6m (2 ft). The rugged design of FLIR i7 infrared cameras feature an easy-grip handle and construction that meets IP43 dust and splash-proof standards.
Measurement modes for the FLIR i7 compact infrared camera include spot (center), area (Min / Max) and isotherm (above / below). A microSD card is incorporated into the design of the FLIR i7, which can store up to 5,000 JPEG images. Each image can later be analyzed using the included QuickReport PC software.
FLIR i7 Thermal Imaging Cameras ship complete with:
- 2G microSD card and miniSD adaptor
- Li-Ion rechargeable battery with 100-240V AC adaptor/charger with EU, UK, US and Australian plugs
- QuickReport software with USB Mini-B cable
- Built-in manual lens shutter
- Hard case
Documents
Specifications
| Accuracy | 2% |
|---|---|
| Detector | 140x140 |
| Total Pixels | 19,600 |
| Min (°C) | -20 |
| Max (°C) | 250 |
| Field of View | 29°x29° |
| Laser | None |
| Digital Camera Function | None |
| Thermal Sensitivity | 0.10°C |
| LCD Diagonal Size | 2.8" |
| Video Output | None |
| Adjustable Emissivity | Yes |
| Image Rate | 9 Hz |
| Alarms / Isotherms | Above/Below |
| Box | 1 |
| Moveable Spots | Center Fixed |
| Annotation | None |
| Optional Lens (Temp or FOV) | None |
| Battery Life (hours) | >4 |
| Zoom | None |
| Unique Features | High resolution
Center spot Area box Isotherms |
|
