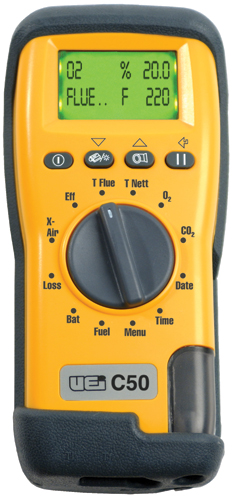

UEi C50 Combustion Analyzer
Combustion analyzer with infrared printer port
Availability
Select options to see availability
Features
- Manufactured by UEi
- Flue Temperature Range: 32 - 1112°F (0 - 600 °C)
- Resolution: 1°F / °C
- Accuracy: ±5°F (2°C) ±0.3% of reading
- O2 Range: 0 to 21%
- Resolution: 0.1%
- Accuracy: ±0.2% of reading
- CO2 Range: 0 to 30% range
- Resolution: 0.1%
- Accuracy: ±0.3% of reading
- Efficiency Range: 0 to 99.9%
- Resolution: ±1.0 of reading
- Accuracy: 0.1%
Includes FREE
The UEi C50 enables HVAC professionals to accurately test and service all residential combustion appliances. The C50 measures flue temperature and oxygen and has the ability to calculate carbon dioxide, gross / net efficiency and excess air. The extra large backlit LCD displays two parameters at one time. Easily choose the desired combustion parameter with the rotary selector.
Other features of the UEi C50 combustion analyzer include a unique DMM style rotary selector, protective boot w/integral magnet, real-time clock, large 2-line backlit display and infrared printer port. The optional printer allows you to print your readings to document your test results.

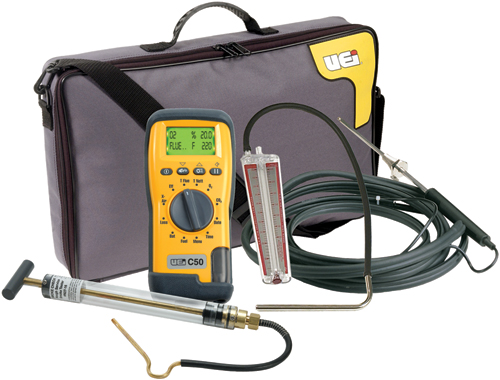

UEi C50 Combustion Analyzer Oil Kit (C50/OILKIT)
The UEi C50 is available as a meter only or as part of an oil kit. The oil kit is an effective and affordable way to measure combustion efficiency when installing or maintaining oil-burning appliances.
The UEi C50/OILKIT ships complete with:
- C50 combustion analyzer
- Stainless steel probe
- SPT1 Smoke Test Kit
- D460 Draft pressure gauge
- AACA4 AC adapter
- AC75 soft carrying case
- Particle filter
- Owners guide
|
Printers
|
||
|---|---|---|
|
Infrared thermal printer with integrated magnet in the back of the rubber boot for hands-free easy operation
|
$295.95 |
|
Thermal paper for infrared thermal printer KMIRP2
|
Starting at $8.95 |
|
Batteries/Chargers
|
||
|
AC Adapter / Charger
|
$23.95 |
|
Cases
Carrying cases, spare cases
|
||
|
|
UEi Soft Carrying Case
|
Starting at $31.95 |
|
Accessories
Please consider these optional accessories.
|
||
|
Determines efficient combustion from distillate fuels
|
$95.95 |
|
|
UEi SP9 Smoke Paper and Chart
|
$24.95 |
