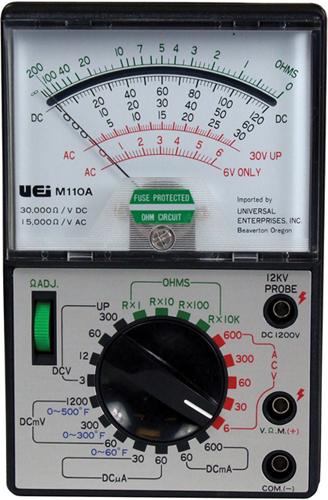

UEi M110A Analog Multimeter
21 ranges and high resolution DC μA for flame safeguard testing
Features
- Part number M110A
- Manufactured by UEi
- 21 ranges
- 600 Volts AC & 300 Volts DC
- 2 MΩ resistance
- High resolution DC μA for flame safeguard testing
- DC millivolt scale allows use of adapters
- Color-coded and mirrored scale plate
The UEi M110A analog multimeter offers high-resolution voltage and ohms scales needed for electrical troubleshooting. In addition, the UEi M110A analog multimeter also includes the features that help you maintain and troubleshoot HVAC/R systems. Features like DC millivolts and microamps let you troubleshoot flame safeguard circuits, and the millivolts function helps you evaluate heat anticipators.
Other features of the UEi M110A analog multimeter include 21 measurement ranges, 600V AC and 300V DC, resistance to 2 MΩ, and a color-coded and mirrored scale plate. The UEi M110A analog multimeter offers accuracies of ±4% of full scale for AC, ±3% of full scale or scale length for DC and Ohms respectively, and ±2% of divisions for temperature.
