This product has been retired.
Need Help? Call us M-F 8 AM to 6 PM ET 1-800-884-4967
Repair & Calibration: Instrumart is a factory service center for the original Star series. Call 1-800-884-4967 to discuss.

Features

  • Simultaneous display of conductivity, resistivity, TDS or salinity and temperature measurements
  • The Thermo Scientific Orion SMART STABILITY and SMART AVERAGING functions
  • Meets all U.S. Pharmacopeia (USP) requirements
  • Accepts cell constants from 0.001 to 199.9 cm-1
  • Compatible with 2-electrode and 4-electrode conductivity cells
  • Temperature calibration capability
  • Conductivity / TDS / salinity / resistivity calibration of up to 5 points
  • Reading reference temperatures at 5°C, 10°C, 15°C, 20°C or 25°C
  • Storage of up to 10 individually password-protected methods for easy retrieval of operation procedures
  • Datalog up to 1000 points with time and date stamp
  • RS232 port for easy data downloading and software updates
  • Benchtop units can control an autosampler and the 096010 stirrer probe (each sold separately)
  • Benchtop units are splashproof with an IP54-rated housing and include a universal power supply
  • Portable units are waterproof with an IP67-rated housing and run for over 2,000 hours on four AA batteries

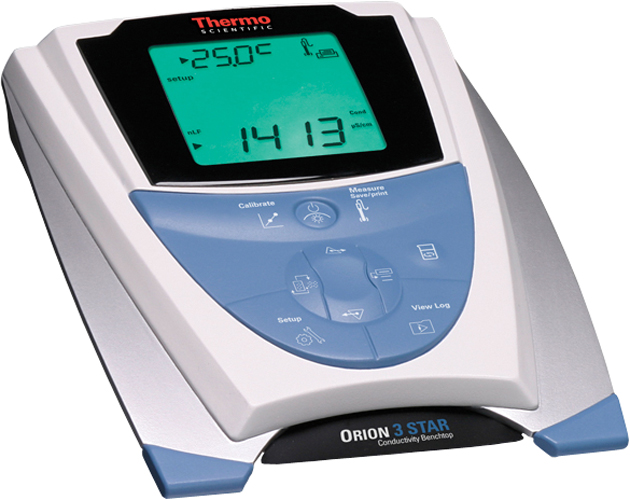

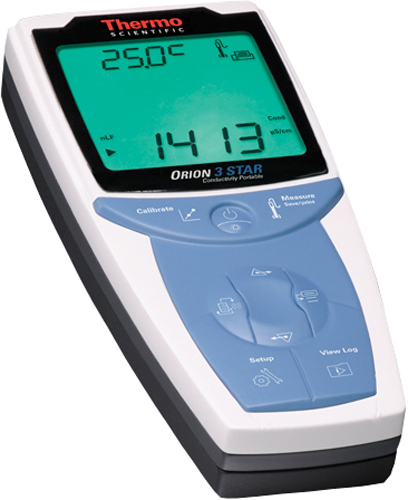

The Thermo Scientific Orion 3-Star Plus conductivity meter features waterproof hand-held or splash-proof benchtop models and has the ability to measure conductivity, resistivity, TDS, salinity and temperature. This Thermo Scientific Orion conductivity meter features a conductivity range from 0.000 to 3000 mS/cm and a resolution of 4 significant digits down to 0.001 µS/cm.

Other features of the Thermo Scientific Orion 3-Star Plus conductivity meter include a backlit LCD, SMART STABILITY and SMART AVERAGING functions for automatically optimized accuracy, precision and response time, the ability to accept cell constants from 0.001 to 199.9cm and the compatibility with 2-electrode and 4-electrode conductivity cells.

There are several different kits available for both style meters.

Benchtop Meter Kits
Application Sensor(s) Accessories & Solutions

Fresh Water & Wastewater

  • 013005MD DuraProbe conductivity cell, K = 0.475, 1 μS/cm to 200 mS/cm
  • 1413 μS/cm conductivity standard (5 x 60 mL bottles)
  • Swing arm electrode stand

Ultra Pure Water 1

  • 013016MD Conductivity cell, K = 0.1, includes flow cell, 0.01 μS/cm to 300 μS/cm
  • 100 μS/cm conductivity standard (5 x 60 mL bottles)
  • Swing arm electrode stand

Ultra Pure Water 2

  • 013016MD Conductivity cell, K = 0.1, includes flow cell, 0.01 μS/cm to 300 μS/cm
  • 100 μS/cm conductivity standard (5 x 60 mL bottles)
  • Conductivity calibration resistor kit
  • Star Navigator 21 software with RS232 computer cable
  • Swing arm electrode stand

Portable Meter Kits
Application Sensor(s) Accessories & Solutions

Fresh Water & Wastewater 1

  • 013005MD DuraProbe conductivity cell, K = 0.475, 1 μS/cm to 200 mS/cm
  • None

Fresh Water & Wastewater 2

  • 013610MD Conductivity cell, K = 0.55, includes 3 meter cable, 10 μS/cm to 200 mS/cm)
  • 1413 μS/cm conductivity standard (10 x 15 mL pouches)
  • Hard field case

Fresh Water & Wastewater 3

  • 013005MD DuraProbe conductivity cell, K = 0.475, 1 μS/cm to 200 mS/cm
  • 1413 μS/cm conductivity standard (10 x 15 mL pouches)
  • Soft field case

Fresh Water & Wastewater 4

  • 013005MD DuraProbe conductivity cell, K = 0.475, 1 μS/cm to 200 mS/cm
  • 1413 μS/cm conductivity standard (10 x 15 mL pouches)
  • Hard field case

Ultra Pure Water Kit 1

  • 013016MD Conductivity cell, K = 0.1, includes flow cell, 0.01 μS/cm to 300 μS/cm
  • 100 μS/cm conductivity standard (5 x 60 mL bottles)
  • Soft field case

Ultra Pure Water Kit 2

  • 013016MD Conductivity cell, K = 0.1, includes flow cell, 0.01 μS/cm to 300 μS/cm
  • 100 μS/cm conductivity standard (5 x 60 mL bottles)
  • Hard field case
Printers
Thermo Scientific Orion Inkjet Printer
Star series inkjet printer creates an instant record of test results
$655.00
$576.40
Thermo Scientific Orion Replacement Ink Cartridge
Replacement ink cartridge for Model 1010006 ink jet printer
$42.00
$36.96
Thermo Scientific Orion Printer Paper
Replacement printer paper for Model 1010006 ink jet printer
$15.00
$13.20
Cases
Carrying cases, spare cases
Thermo Scientific Orion Star Series Cases
Cases for Thermo Scientific Orion Star series meters
Starting at
$140.00
$123.20
Solutions
Thermo Scientific Orion Conductivity Standards
Conductivity standards for Thermo Scientific Orion conductivity electrodes
Starting at
$39.20
Accessories
Please consider these optional accessories.
Thermo Scientific Orion Conductivity Accessories
Conductivity accessories for Thermo Scientific Orion conductivity electrodes
Starting at
$64.80
$57.02
Thermo Scientific Orion Star Series Lab Accessories
Lab accessories for Thermo Scientific Orion Star series meters
Starting at
$63.00
$55.44
In Stock
Thermo Scientific Orion Star Series Adapters
Adapters for Thermo Scientific Orion Star series meters
Starting at
$58.00
$51.04
