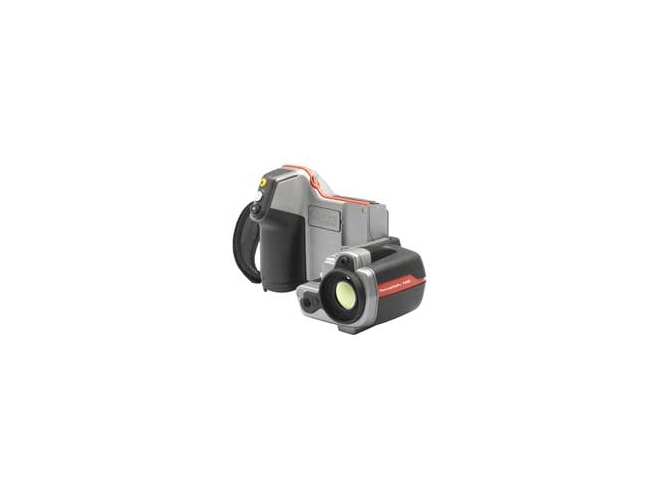

FLIR T360 Infrared Camera
76,800 pixels (320 x 240), up to 1202°F, sensitivity 0.05°C, high resolution, touch screen LCD
Features
- Manufactured by FLIR
- Temperature range: 0 to 650°C
- Laser sighting
- 320 x 240 pixels
- Thermal fusion & picture-in-picture
- Interchangeable optics
- 3.1 mega pixel visual camera
- Thermal sensitivity: 0.05°C
- Removable SD/Memory card, USB and video out
- 3.5" color touch-screen LCD
- Annotate images with voice, text and sketch
- Instant report
- Audible alarms
Includes FREE
The FLIR T360 infrared camera delivers 320 X 240 IR resolution or 76,800 pixels. This, combined with FLIR's exclusive Advanced Signal Processing, reduces image "noise" and produces razor-sharp thermal images with four times the resolution of competing brands with 160 x 120 resolution. With the 3.1 mega pixel visual camera, FLIR T360 infrared cameras can simultaneously capture thermal and visible images. The T360 also includes a target illuminator for low light situations. Markers using touch screen technology can be drawn directly on the visual image.
The FLIR T360 is equipped with METERLiNK, an exclusive wireless technology that records essential meter readings at a job site directly onto your infrared images. METERLiNK connects your FLIR camera with select Extech meters via Bluetooth, transmitting readings that add value and insight to your infrared inspections and reports.
FLIR's new FUSION functionality allows for easier identification and interpretation of infrared images. This advanced technology enhances the value of an infrared image by allowing you to overlay it directly over the corresponding visible image. This functionality combines the benefits of both the infrared image and visual picture at the push of a button. The FLIR T360 infrared camera does this in real-time and the overlay function can be easily adjusted to suit any application such as electrical surveys, building diagnostics, and mechanical inspections.
FLIR T360 infrared cameras offer both auto and manual focus. Featuring a powerful one-touch continuous digital zoom (4X zoom) to zero-in to the optimal view, the FLIR T360 comes with a built-in standard 25° lens with the option of adding on a 45° wide angle or 15° telephoto lens.
The FLIR T360 infrared camera is able to set up to 5 temperature spots on each thermal image, giving users a lot of power to easily view spot temperatures on and around the target being viewed.
The FLIR T360 is available with ThermaTrak software. This breakthrough technology employs recovery software that pinpoints the geographic location of the lost, stolen or missing infrared camera. Additionally, the ThermaTrak software embedded in the camera tracks the IP address, hostname, and even the Internet service provider (ISP) being used after the IR camera has gone missing or been stolen and is connected to the Internet. Companies receive emails with updated location reports each time the IR camera is connected to a computer with internet access.
FLIR T360 infrared cameras ship complete with:
- Transport case
- Camera lens cap
- Battery
- 2-bay battery charger
- Video cable
- USB cable
- SD memory card
- Sun shield
- Stylus pen
- User documentation CD-ROM
- Power supply
- Manual
Documents
Specifications
| Accuracy | 2% |
|---|---|
| Detector | 320x240 |
| Total Pixels | 76800 |
| Min (°C) | -20 |
| Max (°C) | 650 |
| Field of View | 25x19 |
| Laser | On LCD |
| Digital Camera Function | Merging, PIP 3.1MP |
| Thermal Sensitivity | 0.05°C |
| LCD Diagonal Size | 3.5" Touch |
| Video Output | Composite |
| Adjustable Emissivity | Yes |
| Image Rate | 30 Hz |
| Alarms / Isotherms | Isotherm/Temp Screening |
| Box | 5 |
| Moveable Spots | 5 |
| Annotation | Voice/Text/Sketch |
| Optional Lens (Temp or FOV) | 1200°C|6°/15°/45°/90°/100µ/50µ/25µ |
| Battery Life (hours) | >4 |
| Zoom | 1-2X |
| Unique Features | Delta T
Instant report Text Sketch and audible alarm |
|
