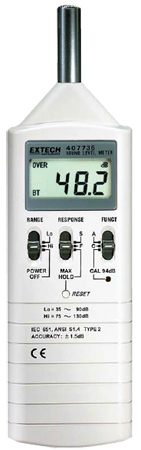

Extech 407736 Digital Sound Level Meter
General purpose and high accuracy meter for Type II sound level measurements
Promotions
Availability
Select options to see availability
Features
- Manufactured by Extech
- A and C weighting
- Measuring range: Low (35 to 90dB), High (75 to 130dB)
- 0.1dB resolution
- Fast/slow response
- Max hold with reset button
- Meets ANSI and IEC 651 Type II standards
- Large 0.5" 3-1/2 digit LCD display
- Built-in calibration check (94dB)
- Tripod mount and analog DC/AC conditioned outputs of 10mV/dB
- Utilizes 0.49" (12.3mm) condenser microphone
- Dimensions: 9.5 x 2.7 x 1"
- Weight: 7.6 oz
- Complete with hard vinyl case and 9V battery
Includes FREE
The Extech 407736 digital sound level meter features A and C weighting and 0.1dB resolution. The 407736 digital sound level meter has a measurement low range of 35 to 90dB and a high range of 75 to 130dB with 1.5dB accuracy.
Features of the Extech 407736 digital sound level meter includes fast/slow response, max hold with reset button, and built-in calibration check (94dB). The compact and portable meter measures 9.5 x 2.7 x 1" and weighs just 7.6 oz. The Extech 407736 digital sound level meter is tripod mountable and has analog DC/AC conditioned outputs of 10mV/dB. Viewing data is easy with the large 0.5" 3-1/2 digit LCD display, and a 0.49" (12.3mm) condenser microphone is utilized.
The Extech 407736 digital sound level meter meets ANSI and IEC 651 Type II standards.
The Extech 407736 digital sound level meter ships complete with hard vinyl case and 9V battery.
Documents
Specifications
| Accuracy | 2dB |
|---|---|
| Range | Low (35 to 90dB)
High (75 to 130dB) |
| Resolution | 0.1dB |
| Display | 0.5" 3-1/2 digit LCD |
| Analog Output | 10mV/dB |
| Microphone | 0.5"(12.3mm) condenser |
| Dimensions | 9.5 x 2.7 x 1" (241 x 69 x 25mm) |
| Weight | 7.6 oz (215g) |
| Weighting | A and C |
|
