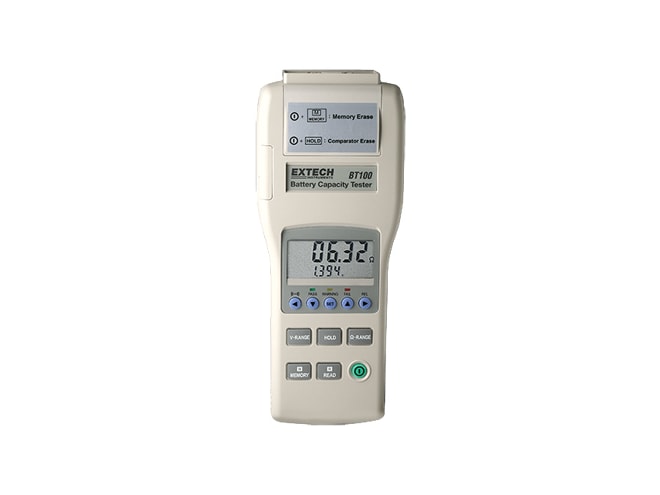

Extech BT100 Battery Capacity Tester
AC Milli-ohmmeter checks battery condition is seconds while the battery is in service
Promotions
Need Help? Call us M-F 8 AM to 8 PM ET 1-800-884-4967
Features
- Part number BT100
- Manufactured by Extech
- Maximum input voltage: 50 VDC
- Power supply: 6 AAA batteries
- Battery life: 7 hours
- Dimensions: 9.75" x 4" x 1.75" (250 x 100 x 45 mm)
- Weight: 17.5 oz (500 g)
- 1 year warranty/CE approved
Includes FREE
The Extech BT100 battery capacity tester can be used to check battery condition in seconds while the battery is in service.
Features of the Extech BT100 Battery Capacity Tester:
- On-line testing without shutting down battery
- Built-in datalogger stores up to 999 tests
- Simultaneously measures battery resistance and voltage
- Windows® 95/98/NT/2000/ME/XP compatible software for downloading readings to a PC
Range and Resolution of the Extech BT100 Battery Capacity Tester:
- Resistance: 400mΩ/100µΩ, 40mΩ/10µΩ, 4Ω/1mΩ, 40Ω/10mΩ
- Basic Accuracy: ±(1% of reading, ±8d)
- Voltage: 4V/1mV, 40V/10mV
- Basic Accuracy: ±(0.1% of reading, ±6d)
The Extech BT100 battery capacity tester ships complete with tester, software, cable, kelvin alligator clips, and kelvin test leads batteries.
Specifications
| Supply Voltage | 4V, 40V |
|---|---|
| Source Output Current | 37.5μA approx to 37.5mA approx |
| Maximum Battery String Test Voltage | 50 V Max |
| Printer | N/A |
| Receiver Accuracy | Impedance: ±(1% reading ± 8d)
Voltage: ±(0.1% reading ±6d) |
| Receiver Precision | Impedance Resolution: 10μΩ, 100μΩ, 1mΩ, 10mΩ
Voltage Resolution: 1mV, 10mV |
| Voltage Range and Resolution | 0 to 50 VDC Max |
| Impedance Range and Resolution | 400mΩ, 100µΩ Resolution
40mΩ, 10µΩ Resolution 4Ω, 1mΩ Resolution 40Ω, 10mΩ Resolution |
| Setting Time per Reading | 1 set (resistance & voltage measurements)/second |
| Receiver Supply | Six AA size 1.5V batteries (AC adaptor (9V DC output)) |
| Battery Pack Life, Full Charge | 7 hours approx. |
| Opterating Temperature | 32 to 104°F (0° to 40°C) |
| Storage Temperature | 14 to 122°F (-10° to 50°C) |
| Operating Humidity | 80%RH (non-condensing) |
| Standard CT Clamp Range | N/A |
| Optional Miniature CT Clamp Range | N/A |
| Optional RopeCT Clamp Range | N/A |
| Transmitter Dimensions | N/A |
| Receiver Dimensions | 9.75 x 4 x 1.75" (250 x 100 x 45 mm) |
| Transmitter Weight | N/A |
| Receiver Weight | Weight 17.5oz (500g) |
|
Test Leads
|
||
|---|---|---|
|
Replacement alligator clips designed for use with the Extech BT100 battery capacity tester
|
$54.99 |
|
Replacement test leads designed for use with the Extech BT100 battery capacity tester
|
$54.99 |
|
Accessories
Please consider these optional accessories.
|
||
|
120V AC adapter for BT100 battery capacity tester
|
$35.99 |
|
Protect and store your multimeters and accessories in a soft vinyl carrying case
|
Starting at $15.99 |
