Carlo Gavazzi General Purpose Reflective Sensors

Retro and Diffuse reflective family of general purpose sensors

Carlo Gavazzi General Purpose Reflective Sensors
Starting at
$112.00
Buying in Volume?
Requesting a Quote?
Government Buyers
Need Help? Call us M-F 8 AM to 8 PM ET 1-800-884-4967

Features

  • Manufactured by Carlo Gavazzi
  • Ranges: 100mm, 200mm, 400mm, 2m and 3m
  • Modulated infrared light
  • Supply voltage: 10 to 40 VDC or 20 to 250 VAC
  • Output: 200mA NPN or PNP; 500 mA SCR
  • Make and break switching function, LED indidcation
  • Protection: Reverse polarity, short circuit, transients
  • High immunity to ambient light
  • Cable and plug versions

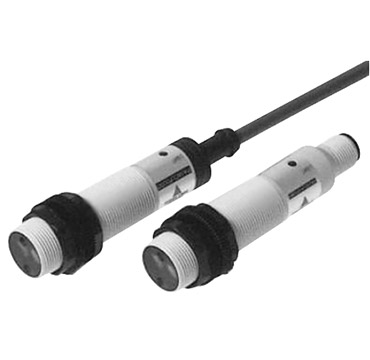

The PA18C Series of Carlo Gavazzi General Purpose Reflective Sensors includes inexpensive general purpose Diffuse-reflective, Retro-reflective, and Polarized Retro-reflective sensors.

Housed in industrial standard 18mm cylindrical PBTP housings, Carlo Gavazzi general purpose reflective sensors are useful for simple applications where a basic sensor provides adequate sensing performance. Carlo Gavazzi general purpose sensors are simple to use and no adjustments are necessary (except the 400 mm diffuse adjustable type). The output is a 4-wire complementary (NO and NC) output in NPN (current sinking) or PNP (current souring) or 2-wire NO or NC thyristor (SCR) output.
