The Panametrics AT600 cable adapters connect legacy products to the new AquaTrans AT600 ultrasonic flow meter. The AT600 can serve as a field replacement for the retired AT868. The only consideration when using legacy parts is the electrical connection. Below are a variety of solutions to connect existing instrumentation to the new AT600.
CF-LP

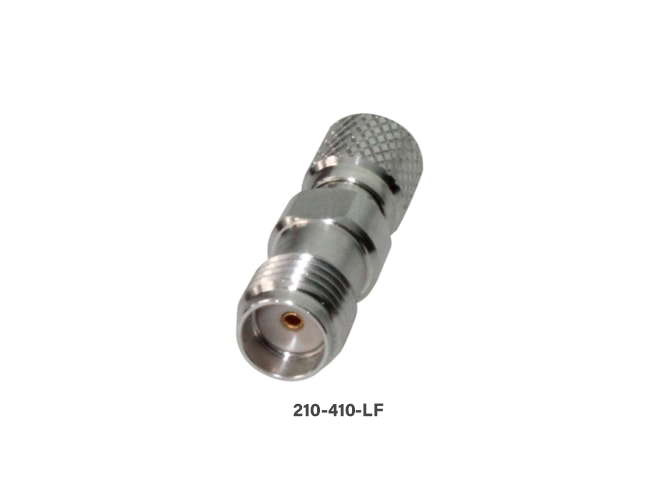

The 210-410-LF adapts the standard AT6 Cable to the CF-LP transducer on the transducer side. Two are required per transducer set, as they are sold as a single piece. The adapter is rated for 4 MHz frequency and up to 446°F (230°C).
UTXDR-408
The 704-1678-LF adapts the standard AT6 Cable to the CF-LP transducer on the transducer side. Two are required per transducer set, as they are sold as a single piece. The adapter is rated for 4 MHz frequency and from -40 to 248°F (-40 to 120°C).
C-RS/C-PT

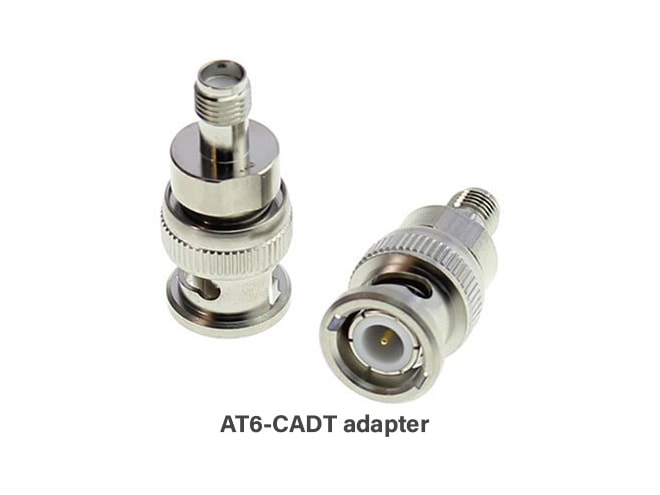

The AT6-CADT adapts the standard AT6 Cable to the C-RS and C-PT transducers on the transducer side. This adapter is sold in a pair, therefore only one is required per transducer set.
AT600 transducer terminal adapter to flying lead
The 238-443-00 adapts the SMB connector on the terminal strip of the AT600 to accept a standard flying lead. This allows any standard legacy cable with stripped leads to be wired to the AT600. 3-foot cable SMB to screw terminal. Two are required, one for the upstream cable and one for downstream.
Part Number | Price | Available | |
---|---|---|---|
238-443-00 |
$315.00 | 3 in stock | |
AT6-CADT |
$340.00 | 1 in stock |
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 4-6 weeks". Click here to select options
